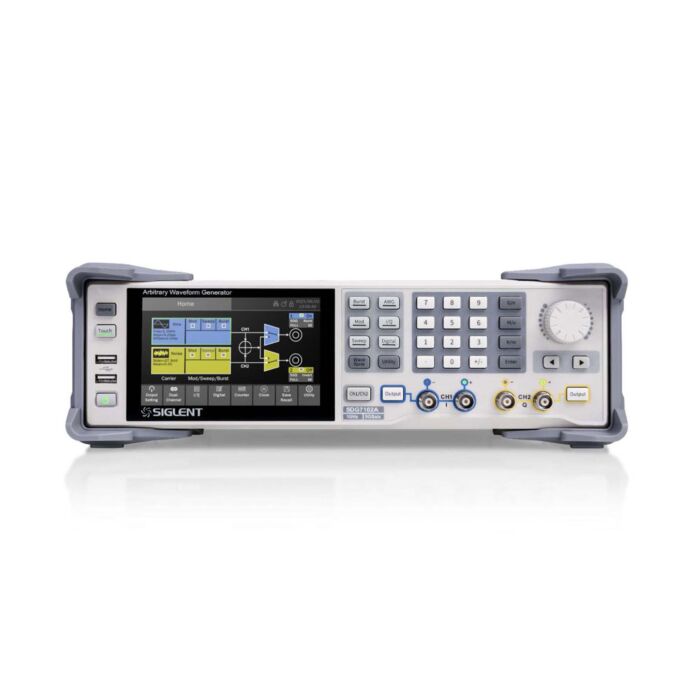

Siglent SDG7032A
Arbitrary Waveform Generator 350MHz; 2 channels; 5 GSa/s

Order #: SDG7032A

Mfg #: SDG7032A

Questions about availability or need help? Contact Us:

(800) 633-0561
$11,389.00

Siglent SDG7032A

Arbitrary Waveform Generator 350MHz; 2 channels; 5 GSa/s

Order #: SDG7032A

Mfg #: SDG7032A

$11,389.00
Availability: Ships in 3-4 weeks

Choose Your Options:

Add Calibration

You have chosen to add the following Calibration Services to Your Order

Make sure your instrument is calibrated and ready to use the minute you open the box by adding our expert calibration service. Why Calibrate? For a complete descriptions of Transcat Service Levels, click here.

Already have this this item and need calibration? Request a calibration quote

Product Highlights

350MHz; 2 differential/single ended output channels; 5 GSa/s sampling rate; 14-bit vertical resolution; Arbitrary Waveform length: 64 pts ~ 512 Mpts; 5 inch touch screen

SIGLENT's SDG7000A is a family of dual-channel Arbitrary Waveform Generators that feature up to 1 GHz bandwidth, a maximum sample rate of 5 GSa/s and 14-bit vertical resolution. It can generate arbitrary waveforms point by point with a maximum 2.5 GSa/s sample rate and vector signal with a maximum 500 MS/s. It also has the ability to generate a variety of signals such as continuous wave, Pulse, Noise, PRBS patterns, and a 16-bit digital bus. It supports the generation of complex signals such as modulation, sweeping, bursting and dual channel copying/coupling/tracking and superposition. The output are differential/single-ended and support a maximum output range of ± 24 V. The instrument can ensure a large amplitude under high-frequency which eliminates an external power amplifier in some applications and addresses a wider range of requirements.

  • Dual channel differential/single ended output 16 bit LVDS/LVTTL digital bus output
  • High-performance sampling system with 5GSa/s sample rate and 14 -bit vertical resolution
  • 1 GHz maximum bandwidth
  • Generates arbitrary waveform with sample rates of 0.01 Sa/s ~ 2.5 GSa/s, with maximum memory depth of 512 Mpts, and provides segment editing /playback functions
  • Generates vector signals with up to 500 MS /s symbol rate
  • Generates low jitter pulses with 1 ns minimum pulse width and 500ps minimum edge
  • Up to 1 GHz bandwidth White Gaussian Noise and the bandwidth is adjustable
  • Supports PRBS up to 312.5 Mbps
  • The digital bus can output digital signals up to 1 Gbps
  • Supports analog/digital modulation, sweeping and bursting
  • Enhanced dual channel operation functions: interchannel tracking, coupling and copying; Dual channel superposition function; Supports mutual modulation between channels
  • The 24 Vpp analog output is superimposed with ± 12 Vdc offset to provide a maximum output range of 24 V (48 V)
  • High precision Frequency Counter
  • 5 inch capacitive touch screen with resolution of 800x480; Supports external mouse and keyboard operation; Supports WebServer to control the instruments remotely
  • Supports multiple interfaces: 10MHz In, 10MHz Out, Trigger In/Out, Markers etc
  • Supports SCPI command for easy integration into test systems
Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.
  1. Siglent 10M-OCXO-L Precision Frequency Reference, high accuracy clock source
    Siglent 10M_OCXO_L
    Precision Frequency Reference, high accuracy clock source

    Order #: 10M-OCXO-L

    Mfg #: 10M_OCXO_L

    Availability: Ships in 3-4 weeks
    $1,199.00
  2. Siglent DIG-LVTTL Digital Bus Kit
    Siglent DIG-LVTTL
    Digital Bus Kit

    Order #: DIG-LVTTL

    Mfg #: DIG-LVTTL

    Availability: Ships in 3-4 weeks
    $959.00
  3. Siglent DIG-LVDS Digital Bus Kit (Without RF cables)
    Siglent DIG-LVDS
    Digital Bus Kit (Without RF cables)

    Order #: DIG-LVDS

    Mfg #: DIG-LVDS

    Availability: Ships in 3-4 weeks
    $959.00
  4. Siglent DIG-LVDS-2 Digital Bus Kit (With 32 RF cables)
    Siglent DIG-LVDS-2
    Digital Bus Kit (With 32 RF cables)

    Order #: DIG-LVDS-2

    Mfg #: DIG-LVDS-2

    Availability: Ships in 3-4 weeks
    $1,359.00
  5. Siglent SDG-7000A-IQ IQ Signal Generator Function (software)
    Siglent SDG-7000A-IQ
    IQ Signal Generator Function (software)

    Order #: SDG-7000A-IQ

    Mfg #: SDG-7000A-IQ

    Availability: Ships in 3-4 weeks
    $2,999.00
  6. Siglent SDG-7000A-BW05 350 MHz to 500 MHz bandwidth upgrade (software)
    Siglent SDG-7000A-BW05
    350 MHz to 500 MHz bandwidth upgrade (software)

    Order #: SDG-7000A-BW05

    Mfg #: SDG-7000A-BW05

    Availability: Ships in 3-4 weeks
    $3,380.00
  7. Siglent SDG-7000A-BW10 500 MHz to 1 GHz bandwidth upgrade (software)
    Siglent SDG-7000A-BW10
    500 MHz to 1 GHz bandwidth upgrade (software)

    Order #: SDG-7000A-BW10

    Mfg #: SDG-7000A-BW10

    Availability: Ships in 3-4 weeks
    $5,720.00
