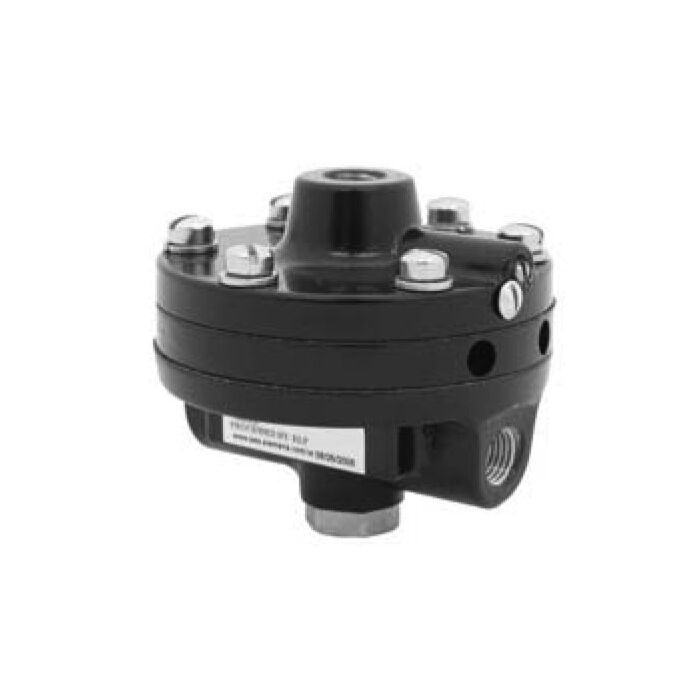

Siemens Industry 61H

High-Capacity Booster Relay

Order #: 61H

Mfg #: TGX:61H

Questions about availability or need help? Contact Us:

(800) 633-0561
$307.84

Siemens Industry 61H

High-Capacity Booster Relay

Order #: 61H

Mfg #: TGX:61H

$307.84
Availability:
In stock
Available Promotions

Only need this item for a short time? Learn about rentals

Questions about this product? Speak to an expert

Designed to meet high-speed control applications, the Model 61H F/R Booster Relay produces a high volume boosting action. Its primary purpose is for use with valve positioners, although it can be used by itself for the high volume of air it can control. (This relay is not normally used in measuring circuits.)

The relay contains an integral stabilizing bypass valve, eliminating the need for an externally piped bypass. The bypass opening is controlled by a screwdriver adjustment in the body of the relay which permits tuning for optimal dynamic response. Opening this valve improves the stability of the positioner/relay/actuator circuit.

Product Highlights

  • Supply Pressure: 100 psig max.
  • Input Pressure: 100 psig max.
  • Accuracy of 1:1 Ratio: 5% (based on 3-15 psi input)
  • Reproducibility: .0.1% (based on 3-15 psi input)
  • Linearity: 0.4% (based on 3-15 psi input)
  • Maximum Flow Coefficient [Cv]: 0.9 Supply; 1.1
  • Exhaust Ambient Temperature Limits: -40° to +180°F (-40° to +82.2°C)
  • Materials of Construction: Delrin™, aluminum, brass, stainless steel, Buna-N, epoxy polyester powder coat, nickel plate; diaphragm material: nitrile on polyester (effective mid-2009), neoprene on cotton/polyester
