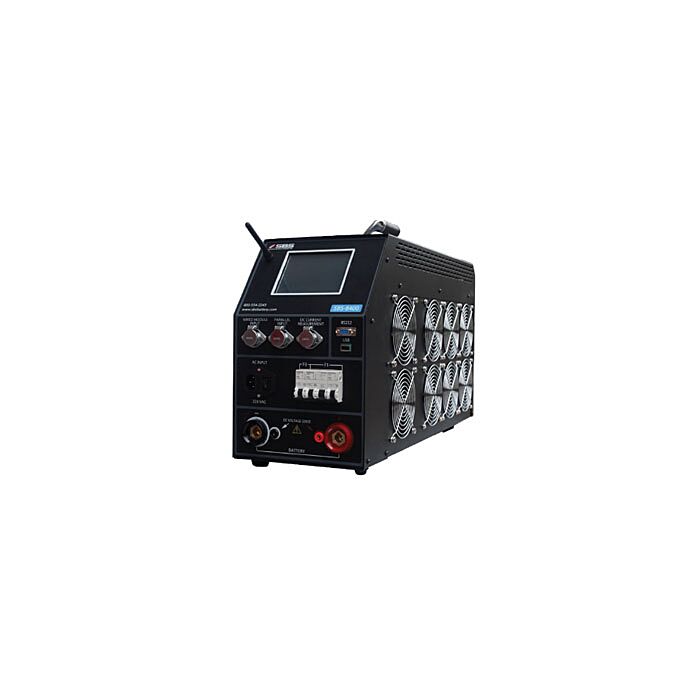

Storage Battery System SBS-8400: Battery Load Bank with Monitoring

Automatically discharges batteries unmanned without danger of over-discharging
Individual cell monitoring capabilities via wireless modules
Can be used on a variety of systems with lead acid and/or nickel cadmium batteries
Test parameters are adjustable during test without stopping test
Automatically protects and saves data from an unexpected test stop/end
Easy to navigate unit menu and computer software
Download data after discharge to USB drive
Generates custom reports for trending, records and reporting with included software
Can be slaved with other load banks to increase amp draw up to 720 Amps
Wide voltage and current range: 10–300 Vdc / 0–120 Amps
Wireless module connection that measures and records individual cell voltages
5.7 in. LCD touch screen
30 parameter presets that can be adjusted during testing
Selectable discharge mode: constant current (amps) / power (kW)
4 adjustable stop points and multiple alarm designs to control the process intelligently
- Low system voltage: 0–250 Vdc
- Discharge time: 0–99 Hour 99 Min.
- Discharge capacity: 0–9999 Ah
- Low cell voltage: 0–15.00 V
- View test data in real time on screen or with computer via RS232

Storage Battery System SBS-8400
