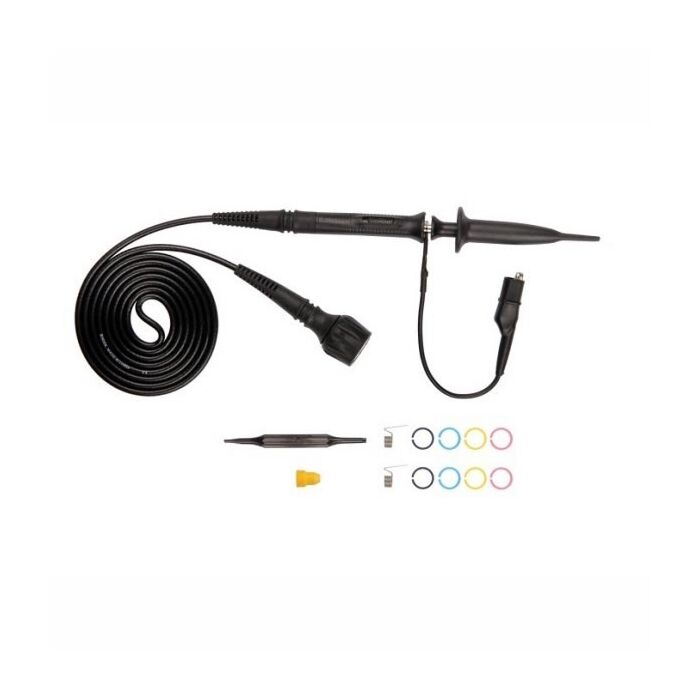

RIGOL PVP2150 150MHz Passive Oscilloscope Probe

Overview

PVP2150: 1X/35MHz, 10X/150MHz, one/two Probes Kit
10X or 1X Switchable
10 pF to 25 pF Compensation Range
1X: 1MΩ ±1% input resistance 50 pF ±20 pF input capacitance 150 VRMS CAT II max. rated input voltage
10X: 10MΩ ±1% input resistance 10pF ±5pF input capacitance 300 VRMS CAT II max. rated input voltage
New Design in appearance brings you perfect user experience

RIGOL PVP2150 Passive Probe User's Guide

Rigol PVP2150 Specifications
Electrical Specifications
Bandwidth	1X: DC to 35 MHz 10X: DC to 150 MHz
Input Resistance	1X: 1 MΩ ± 1% @ DC 10X: 10 MΩ ± 1% @ DC
Rise Time	1X: 10 ns 10X: 2.3 ns
Input Capacitance	1X: 50 pF ± 20 pF 10X: 10 pF ± 5 pF
Attenuation Ratio	10:1 or 1:1 Switchable
Max. Rated Input Voltage	1X: 150 V RMSCAT II 10X: 300 V RMSCAT II
Compensation Range	10 pF to 25 pF
Mechanical Characteristics
Weight (probe only)	About 40 g
Cable Length	120 ± 2 cm
Probe Tip Diameter	4.6 mm
Environmental Specifications
Temperature	Operating: 0°C to +50°C Nonoperating: -20°C to +70°C
Altitude	Operating: 2,000 m Nonoperating: 15,000 m
Max. Relative Humidity	80% relative humidity for temperature up to +31°C, decreasing linearly to 40% relative humidity at +50°C
Pollution Degree	Pollution Degree 2
