Product Highlights

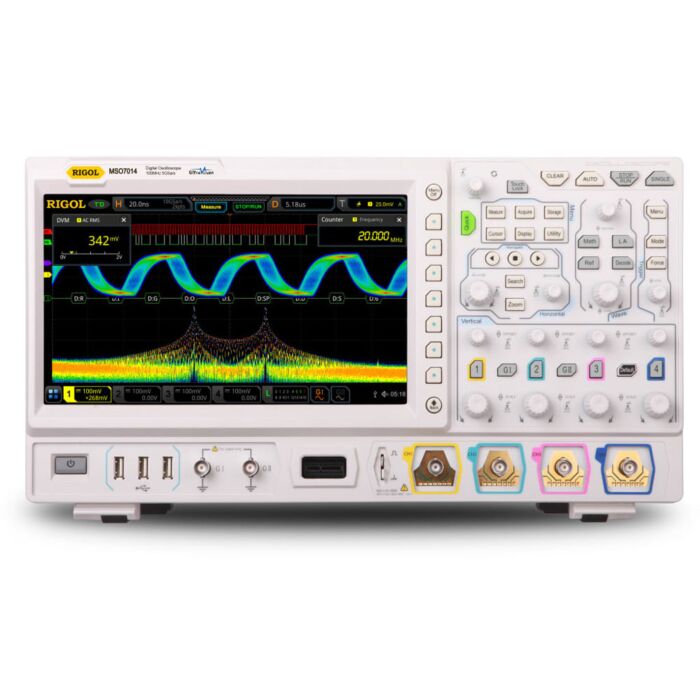

The Rigol MSO7000 mixed signal oscilloscope has a high sample rate of 10 GS/s, high waveform capture rate of 600,000 waveforms per second, long record length with a maximum of 5 million points, multi level intensity and color graded display, advanced analysis features, and a flexible user interface.
This instrument brings advanced analysis and visualization capabilities to embedded design, power analysis, serial decode and RF applications. Analyze your critical signals with the zone trigger, enhanced FFT, color graded histogram, and precision measurements. All together, this makes the MSO7000 series a powerful oscilloscope for any engineer.
- 100 MHz mixed signal oscilloscope
- Bandwidth upgrades available
- 4 analog channels, 16 digital channels
- 10 GS/s real-time sample rate
- 100M record length (upgradeable to 500M via optional software)
- High waveform capture rate (600,000 waveforms per second)
- Up to 450,000 frames of hardware real-time and ceaseless waveforms recording and playback functions
- Integrates 6 independent instruments into 1, including digital oscilloscope, 16-channel logic analyzer, arbitrary waveform generator, digital voltmeter, 6-digit frequency counter and totalizer, and protocol analyzer
- A variety of serial protocol triggers and decodes available
- Auto measurement of 41 waveform parameters; full-memory hardware measurement function
- A variety of math operations, built-in enhanced FFT analysis, and peak search function
- Waveform histogram analysis (standard)
- User-defined one-key quick operation
- 10.1 inch capacitive multi-touch screen, 256-level intensity grading display, with color persistence
- Multiple interfaces available: USB HOST& DEVICE, LAN (LXI), HDMI, TRIG OUT, and USB-GPIB
