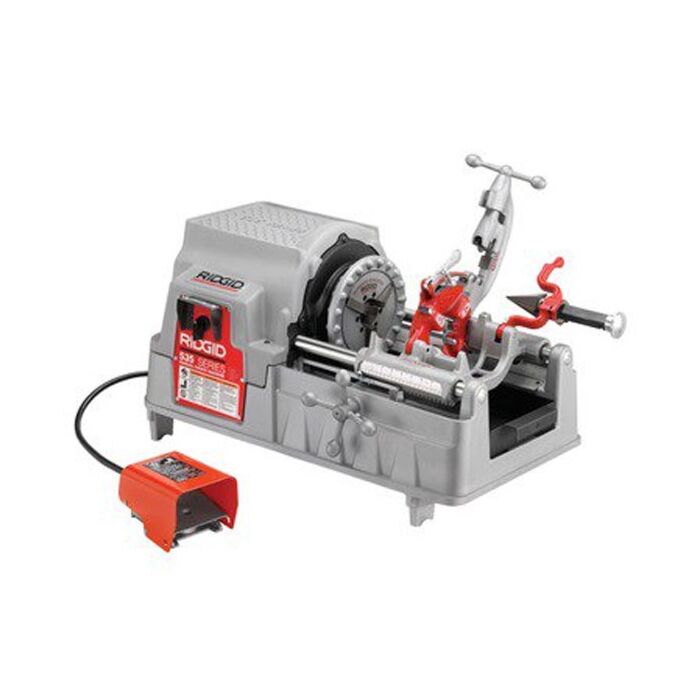

Ridgid Tools 96507

535M Pipe Threader,230V 36 RPM,?"-2"NPT

Order #: 96507

Mfg #: 96507

Questions about availability or need help? Contact Us:

(800) 828-1470
Special Price $6,870.00 Regular Price $7,231.40

Ridgid Tools 96507

535M Pipe Threader,230V 36 RPM,?"-2"NPT

Order #: 96507

Mfg #: 96507

Special Price $6,870.00 Regular Price $7,231.40
The Model 535 maintains the ruggedness of the industry workhorse while adding the features that makes the threading operation more productive. A large chip tray and oil reservoir makes the 535 ideal for longer uninterrupted threading.
Availability: Item ships in about 2 - 3 Weeks
Available Promotions

Only need this item for a short time? Learn about rentals

Questions about this product? Speak to an expert

Product Highlights

  • Large 1.75 gallon (6.6 L) oil tray.
  • Large chip tray.
  • Generous top cover for keeping tools and fittings handy.
  • High clearance carriage makes threading easier.
  • Speed chuck with rocker-action jaws centers and grips work piece instantly.
  • Can be used with geared Models 141 and 161 threaders.
  • Uses Model 811A quick-opening die heads.
  • Length gauge for quick, accurate cut-off.
  • Pipe Capacity 1/8"-2" (3mm-50mm) 2 1/2"-4" (62mm-100mm), 4"-6" (100mm-150mm) with 141 and 161 geared threaders.
  • Bolt Capacity 1/4"-2" (6mm-50mm).
  • Switches Forward/off/reverse and integral foot switch.
  • Chuck Speed Chuck™ with three replaceable rocker-action jaw inserts.
  • Rear Centering Device Cam-action, turns with chuck.
  • Reamer 5-flute cone, RH, 1/8"-2" (3mm-50mm).
  • Oil Pump Self-priming gerotor oil pump.
  • Reamers RH/LH combination reamer available.
  • 1/2" - 2" NPT Hammer Chuck Machine
  • 36 RPM
  • 230 Voltage
  • Frequency 50 - 60
  • Phase 1
  • Universal
  • 7.5 Amp Draw
  • 1/2 HP
  • 260 lb.
