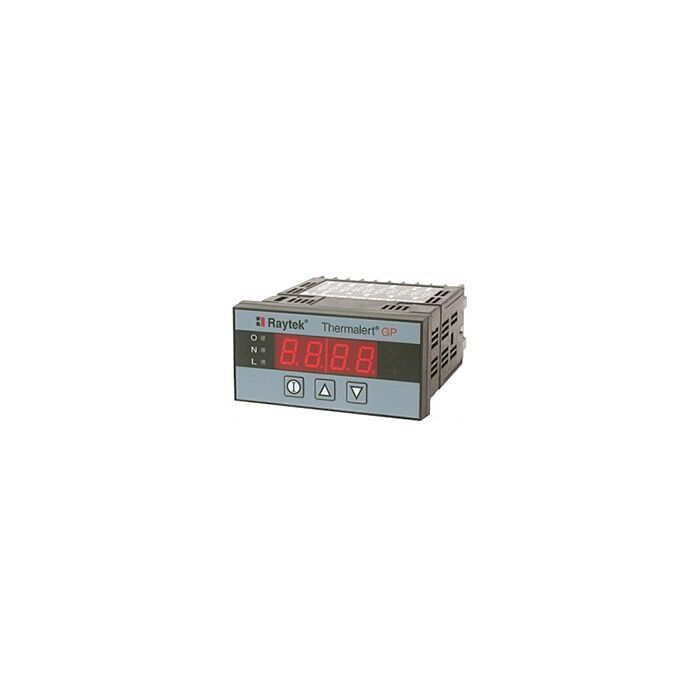

Raytek RAYGPC
Panel mount meter & PS 110/220 VAC for Ceiling Mount Sensors

Order #: RAYGPC

Mfg #: 2469926

Questions about availability or need help? Contact Us:

(800) 633-0561
$827.00

Raytek RAYGPC

Panel mount meter & PS 110/220 VAC for Ceiling Mount Sensors

Order #: RAYGPC

Mfg #: 2469926

$827.00
Availability: Ships in 3-4 weeks

Choose Your Options:

Add Calibration

You have chosen to add the following Calibration Services to Your Order

Make sure your instrument is calibrated and ready to use the minute you open the box by adding our expert calibration service. Why Calibrate? For a complete descriptions of Transcat Service Levels, click here.

Already have this this item and need calibration? Request a calibration quote

Product Highlights

  • 110/220 VAC power
  • 1/8 DIN panel monitor
  • Powers CI, GPR, or GPS sensing heads
  • Accepts analog signal inputs from any 0-5V, 4-20mA or thermocouple type J, K, E,N, T, R, or S device
  • Temperature Range: -20°C to 500°C (-4°F to 932°F)
  • Accuracy (mV): ± 1.5% of reading or ± 2°C, whichever is greater
  • Accuracy (t/c): ± 1.5% of reading ± 2°C or ± 4°C, whichever is greater
  • Spectral Response: 8 to 14 microns
  • Repeatability (digital and voltage): ± 0.5% of reading or ± 2°C, whichever is greater
  • Repeatability (t/c): ± 0.5% of reading ± 1°C or ± 2°C, whichever is greater
  • Temperature Resolution: 0.1°C
  • Response Time (95%): 150 mSec
  • Emissivity: 0.10 to 1.10 (adjustable
  • )
  • Transmissivity: 0.10 to 1.00 (adjustable)
  • Signal Processing: Peak hold, valley hold, variable averaging
  • Self diagnostics/sensor status: Normal operation, alarm, out of range, unstable, sensor fault
  • Bore-Sight tolerance: 3° @ focal point
