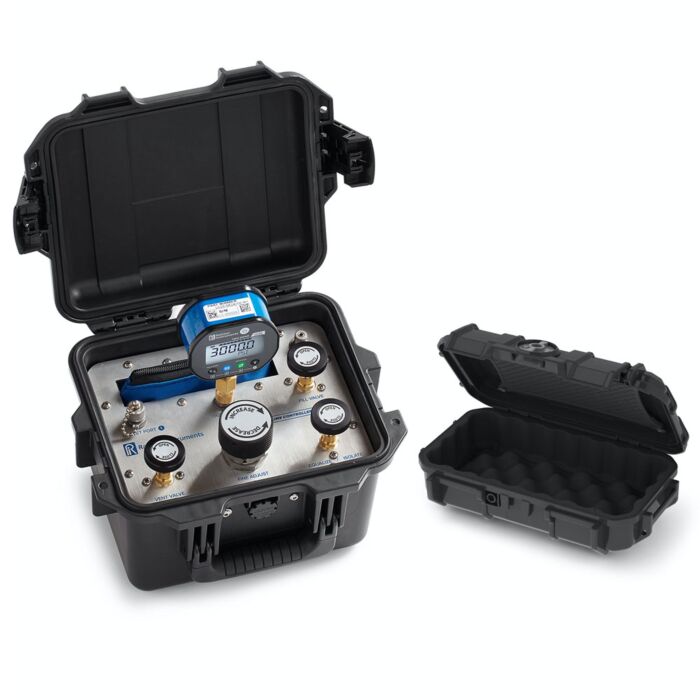

Ralston Instruments QTVC-EN-KIT4-GP ControlPak Pressure Controller, 1000 psi LC20 pressure gauge
Order #
QTVC-EN-KIT4-GP
|
Mfg #
QTVC-EN-KIT4-GP
compare_arrows
Compare Products
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
arrow_drop_down
Add to Cart
Add to Quote
Tariff fees or manufacture imposed surcharges may be applicable.
compare_arrows
Compare Products
Overview
Product Highlights
Perform both ultra-precise low pressure differential or high pressure static pressure calibrations with nitrogen using the same device with an external pressure calibrator
Pressure Controller: ControlPak Manual Pressure Controller
Pressure Reference: LC20 pressure gauge, 1000 psi / 7 MPa, 1/4" Male NPT bottom connection
Reference Connection: 1/4" female NPT x female Quick-test, no check-valve, brass
Hose: Quick-test 6900 psi hose, brass hose ends, 6 ft (1.83 m) long
Hose: Quick-test 6900 psi hose, brass hose ends, 3 ft (92 cm) long
Process Connection: 1/4" male NPT x male Quick-test, no check-valve, brass
Process Connection: 1/4" male NPT x male Quick-test, no check-valve, brass
Bag: Zippered bag to hold hose and adapters, nylon
Gauge Carrying Case: LC10 or LC20 Pressure Gauge Case
Specifications
Media Compatibility
Air, Inert Gas
Inlet Port
Male Quick-test
Outlet Port
Male Quick-test
Max Pressure
3000 PSI / 200 bar / 20 MPa
Max Vacuum
10 InHg / 33.9 kPa
Materials
ABS Plastic, Anodized Aluminum, Brass, Plated Steel, Stainless Steel
Seal Materials
Buna-N, Delrin, Teflon
Min Operating Temperature
0 °F / -18 °C
Max Operating Temperature
130 °F / 54 °C
Hose 1
Quick-test Hose, Brass ends, 6ft / 1.9m long
Hose 2
Quick-test Hose, Brass ends, 3ft / 0.9m long
Pressure Reference
None
Process Connection
None
Reference Connection
None
Country of origin
USA
