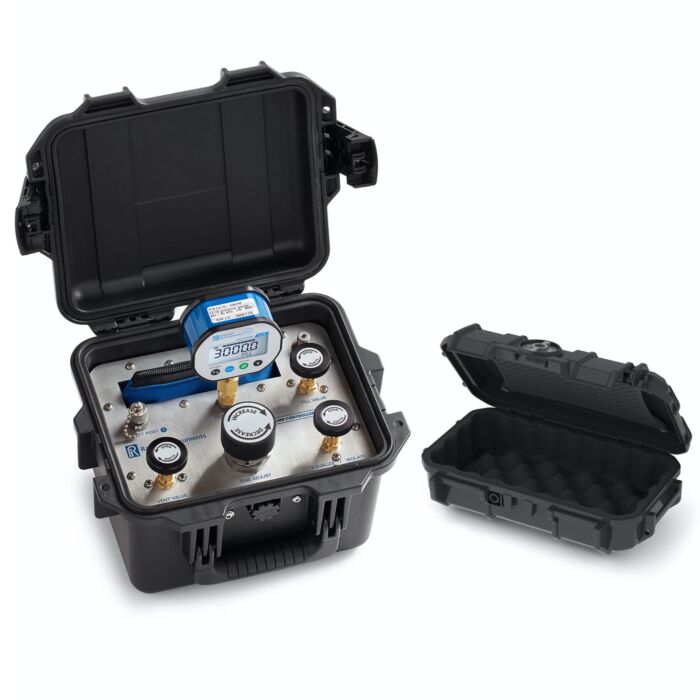

Ralston Instruments QTVC-EN-KIT3-GR ControlPak Pressure Controller, 3000 psi LC10 pressure gauge
ControlPak Pressure Controller, 3000 psi LC10 press gauge

Order #: QTVC-EN-KIT3-GR

Mfg #: QTVC-EN-KIT3-GR

Questions about availability or need help? Contact Us:

(800) 633-0561
$3,039.25

Ralston Instruments QTVC-EN-KIT3-GR ControlPak Pressure Controller, 3000 psi LC10 pressure gauge

ControlPak Pressure Controller, 3000 psi LC10 press gauge

Order #: QTVC-EN-KIT3-GR

Mfg #: QTVC-EN-KIT3-GR

$3,039.25
Availability: Ships in 3-4 weeks

Product Highlights

Perform both ultra-precise low pressure differential or high pressure static pressure calibrations with nitrogen using the same device with an external pressure calibrator

  • Pressure Controller: ControlPak Manual Pressure Controller
  • Pressure Reference: LC10 pressure gauge, 3000 psi / 200 bar / 20 MPa, 1/4" Male NPT bottom connection
  • Reference Connection: 1/4" female NPT x female Quick-test, no check-valve, brass
  • Hose: Quick-test 6900 psi hose, brass hose ends, 6 ft (1.83 m) long
  • Hose: Quick-test 6900 psi hose, brass hose ends, 3 ft (92 cm) long
  • Process Connection: 1/4" male NPT x male Quick-test, no check-valve, brass
  • Process Connection: 1/4" male NPT x male Quick-test, no check-valve, brass
  • Bag: Zippered bag to hold hose and adapters, nylon
  • Gauge Carrying Case: LC10 or LC20 Pressure Gauge Case
Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.
Media Compatibility Air, Inert Gas
Inlet Port Male Quick-test
Outlet Port Male Quick-test
Max Pressure 3000 PSI / 200 bar / 20 MPa
Max Vacuum 10 InHg / 33.9 kPa
Materials ABS Plastic, Anodized Aluminum, Brass, Plated Steel, Stainless Steel
Seal Materials Buna-N, Delrin, Teflon
Min Operating Temperature 0 °F / -18 °C
Max Operating Temperature 130 °F / 54 °C
Hose 1 Quick-test Hose, Brass ends, 6ft / 1.9m long
Hose 2 Quick-test Hose, Brass ends, 3ft / 0.9m long
Pressure Reference None
Process Connection None
Reference Connection None
Country of origin USA
