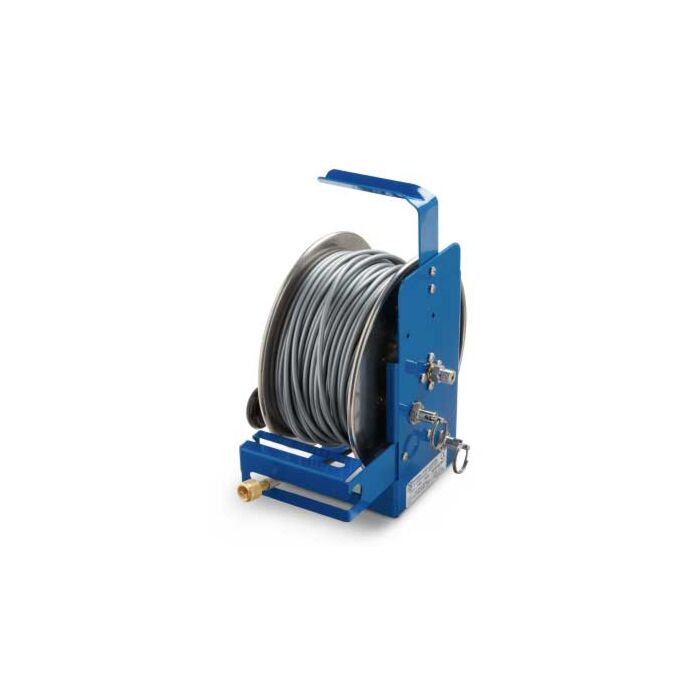

Ralston Instruments QTHR-QT-30m Quick-test Hose Reel, 30 meter hose, brass hose ends

Product Highlights

The Quick-test hose reel is an innovative solution for storing Ralston Quick-test hoses. It includes inlet and outlet ports, a brake and locking pin and multiple mounting options.

• QTHR-0000
  • Max Pressure: 6900 PSI / 475 bar / 48 MPa
  • Max Operating Temperature: 140 F / 60 C
  • Materials: Anodized Aluminum, Brass, Powder Coated Steel, Stainless Steel
  • Media Compatibility: Air, Alcohol, Antifreeze, Ethylene Glycol, Hydraulic Oil, Inert Gas, Mineral Oil, Natural Gas, Petroleum Based Oil, Skydrol, Windshield washer fluid, Transmission fluid, Light motor oil, Ralston Calibration Oil, Water
  • Min Operating Temperature: -40 F / -40 C
  • Weight: 5.08 lbs / 2.30 kg
  • Dimensions: H: 9.5 in (24.13 cm) x W: 6.5 in (16.51 cm) x D: 11.5 in (29.21 cm)
  • QSQS-HOS-10m-NR
    • Burst Pressure: 27000 PSI / 1860 bar / 185 MPa
    • Color: Silver
    • Country of origin: USA
    • Fluid Media: Air,Inert Gas,Natural Gas,Petroleum Based Oil,Water
    • Hose Length: 30 m / 98.42 ft
    • Inner Diamete:r 0.08 In / 3.00 mm
    • Materials: Brass
    • Max Operating Temperature: 140 F / 60 C
    • Max Pressure: 6900 PSI / 475 bar / 48 MPa
    • Max Vacuum: -30.00 InHg / -101.6 kPa
    • Media Compatibility: Air, Inert Gas, Natural Gas, Petroleum Based Oil, Water
    • Min Operating Temperature: -40 F / -40 C
    • Minimum Bend Radius: 1.00 In / 26 mm
    • Outer Diameter: 0.20 In / 6.00 mm
    • Type: QT

  Each Unit Includes

  • Hose Reel - Quick-test Hose Reel without hose (QTHR-0000)
  • Hose - Quick-test 6900 psi hose, brass hose ends, 30m long (QTQT-HOS-30m-NR)
