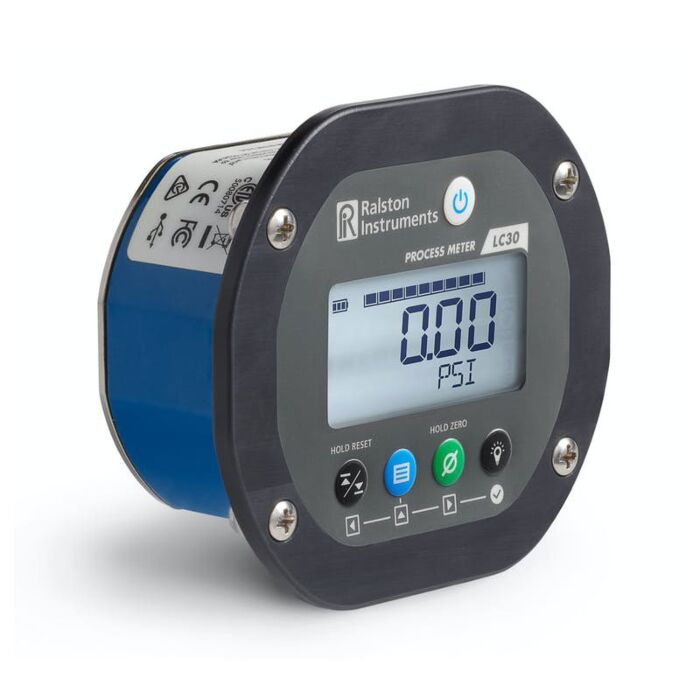

Ralston Instruments LC30-GR2M-TX125-00
Pressure/Temp Gauge, 3000 psi, 1/4" M NPT, Probe, Cable

Order #: LC30-GR2M-TX125-00

Mfg #: LC30-GR2M-TX125-00

Questions about availability or need help? Contact Us:

(800) 633-0561
$1,072.90

Ralston Instruments LC30-GR2M-TX125-00

Pressure/Temp Gauge, 3000 psi, 1/4" M NPT, Probe, Cable

Order #: LC30-GR2M-TX125-00

Mfg #: LC30-GR2M-TX125-00

$1,072.90
Availability: Ships in 3-4 weeks

Product Highlights

LC30 Pressure / temperature gauge, 3000 psi pressure, 1/4" Male NPT back connection, 1/4" Dia x 12" long external probe, 16ft cable

The LC30 is a robust device that measures and displays pressure readings on a large, backlighted screen. It is AC powered with a battery backup. The LC30 has the ability to show High and Low pressure values on-screen, change between 15 different engineering units or add custom engineering units. The included PC FieldLab Desktop software can be used for calibration, testing and logging pressure.

Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.
Weight 12.6 oz / 355 grams
Length 1.75 in / 45 mm
Width 3.4 in / 87 mm
Height 4.1 in / 11 cm
Accuracy - Pressure Measurement +/- 0.1% of Full Scale (ASME B40.100 Grade 4A/ISO Class 0.1)
Accuracy - Temperature Measurement +/- (0.15 +0.002*|t|)°C (IEC 60751 Class A)
Backup Power AAA Alkaline (IEC-LR03)
Battery Count 2
Battery Life 1000 Hours
Burst Pressure 12000 PSI / 825 bar / 83 MPa
Calibration Certificate NIST traceable (included)
Certifications Certified to CSA Standard C22.2 No. 61010-1, Complies with Pressure Equipment Directive 2014/68/EU, Complies with Low Voltage Directive 2014/35/EU, Complies with Electromagnetic Compatibility Directive 2014/30/EU
Country of origin USA
Datalogging PC based (via USB)
Electrical Connection M12 female, A Code, Silicone seal, IP67
Electrical Rating 50 mA @ 5 VDC
Engineering Units atm, bar, cmH2O @4°C, inH2O @39°C, kPa, mbar, psi, inHg @39°F, kgf / cm^2, mmHg @0°C, mmH2O @4°C, ftH2O @39°F, cmHg @ 0°C, oz / in^2
Harmonized Code 9026.20.0000
Ingress Protection IP67 (1 meter water submersion for 30 minutes)
LCD Display 2.4 in / 61 mm segmented LCD Display
Materials ABS / Polycarbonate Blend, Powder Coated Aluminum
Max Operating Temperature 122 °F / 50 °C
Max Pressure 3000 PSI / 200 bar / 20 MPa
Max Probe Temperature 302 °F / 150 °C
Max Storage Temperature 167 °F / 75 °C
Measurement Type Gauge Pressure, Temperature
Media Compatibility Inert Gas, Natural Gas, Petroleum Based Oil, Water, Air, Alcohol, Antifreeze, Ethylene Glycol, Hydraulic Oil, Mineral Oil, Skydrol, Windshield washer fluid, Transmission fluid, Light motor oil, Ralston Calibration Oil
Min Operating Temperature -4 °F / -20 °C
Min Probe Temperature -22 °F / -30 °C
Min Storage Temperature -40 °F / -40 °C
Operating Altitude (max) 10,000 ft (3050 m)
Panel Mount Yes
Power Input 90-264 VAC, 50-60 Hz
Primary Power AC Mains Power
Process Connection 1/4" Male NPT
Process Connection Location Back mount
Protection Class Pollution Degree 2 (UL / IEC 61010-1)
Relative Humidity 0% to 90% (-10 to 35°C), 0% to 70% (35 to 50°C)
Sensor Type Pressure Sensor
Temperature Compensation None
Temperature Units °C, °F, K, R
Thermal Probe 1/4 in / 6.35 mm diameter, 12 in / 30.5 cm long, external cable, 20 ft / 6.1 m long
USB Connection USB (Micro B)
W1 Radio Installed No
Wetted Materials 316 Stainless Steel
Wireless Range 330 ft / 100 m
Wrench Size 7/8 In / 23 mm
End 1 Connector 1/4" Male NPT (ASME B1.20.1)
