Pomona 73094-0

Product Highlights

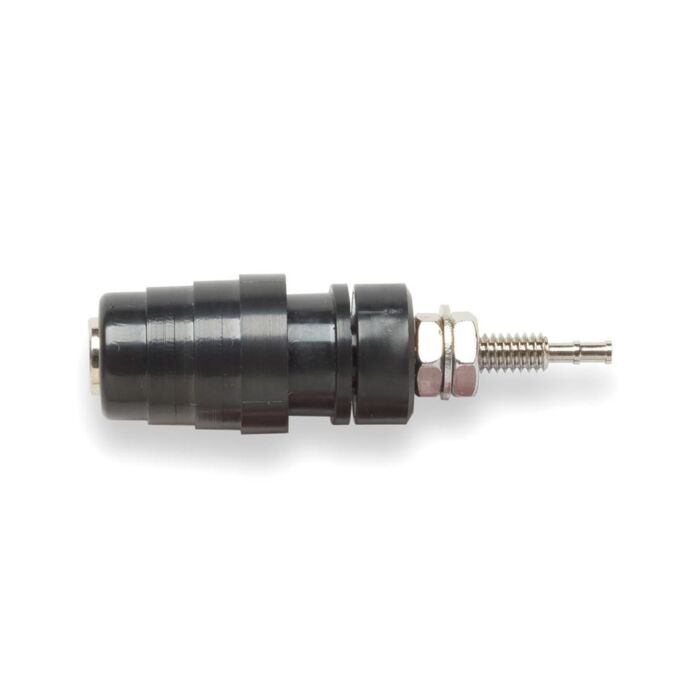

The Pomona 73094-0 Top Loading Binding Post features a spring-loaded cap design that captures wire securely for fast connections and release. Mounts in panels up to 0.188” (4.78mm) in panel thickness and accepts wire gauges up to 0.072” (1.83mm) in diameter. Great in applications where prototyping and making quick connections are important. The binding post comes in BLACK, and rated 33 Vac/70 Vdc with a current rating of 15 A.

• Secure wires quickly
• Mounts are a #8 hole
• Max mounting panel thickness of 0.188” (4,78mm)
• Use up to 15 AWG wire gauge
• 33 V AC / 70 V DC
• 15 A
