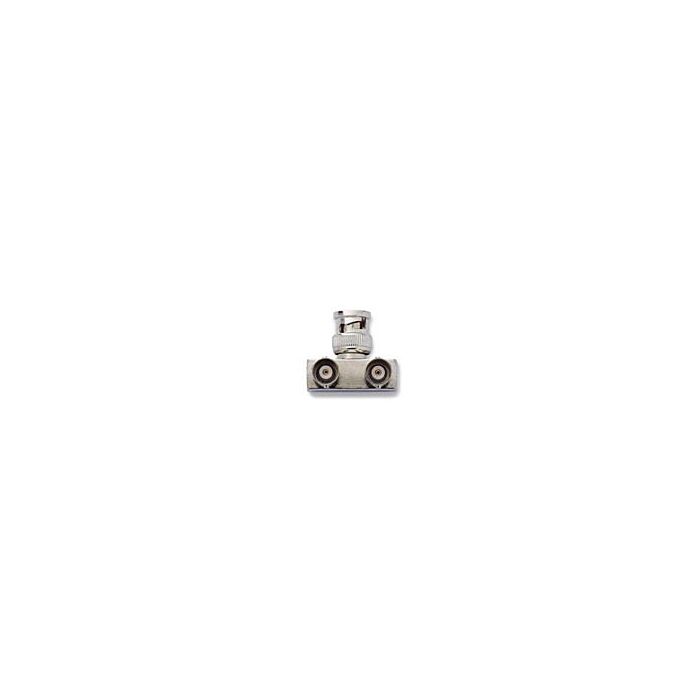

Pomona 6701

Product Highlights

• The modified “ T ” adapter maximizes space by allowing a right-angle connection of BNC cables into the body instead of the side as with conventional “ T “ adapters.
• Ideal for cross-connect panels requiring multiple BNC connections.
• Adapter is precision machined (not die-cast) from brass.
• Connector Body Nickel plated brass
• Center Contact Pin Gold plated brass
• Center Contact Socket Gold plated phosphor bronze
• Insulator Polybutylene Terephthalate
• Rubber Gasket Silicone rubber
• Impedance: 50 Ohms
• Frequency: 0 to 4 GHz
• VSWR: 1.30 max
• Contact Resistance: 3 Milliohms max.
• Voltage * 500 V
• Insulation Resistance: 5,000 Megohms min.
• Insertions: 500
• Temperature: -40 to +85 C
