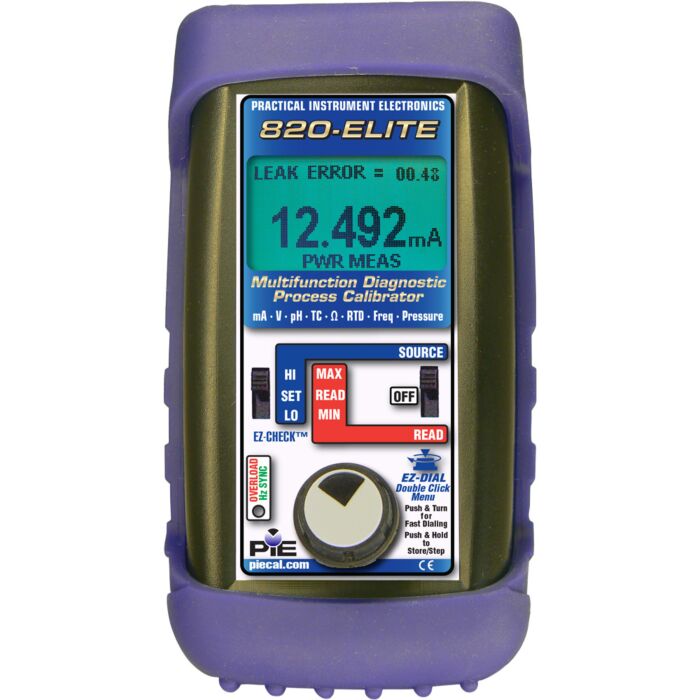

High Accuracy Multifunction Diagnostic Calibrator
Order #: PIE 820ELITE
Mfg #: 820ELITE
Only need this item for a short time?
Questions about this product?
- Lighten up your toolbox - Compact calibrator replaces toolbox of single function devices Milliamp • Voltage • Frequency • pH • Thermocouples • RTDs • Check Continuity • Pressure
- Technician friendly operation - Intuitive EZ-DIAL Double Click Menu makes it easier to setup than other multifunction calibrators. Similar to the single function PIE Calibrators.
- Use it as a milliamp and voltage calibrator
- Source 0 to 24.000 mA, 0 to 10.250 V dc, -20.000 to 99.999 mV and -500.00 to 999.99 mV
- Read to 24.000 mA, 60.00 V dc ±99.999 mV and ±999.99 mV Simulate 2-Wire Transmitters
- Simulate 2-Wire Transmitters
- Power up transmitters & loops with the built-in 24 V power supply
- Simplify HART hookups with built-in 250 Ohm resistor
- Troubleshoot loop problems- Quickly diagnose ground fault and current leakage with patented loop diagnostic technology (US Patent 7,248,058).
- Calibrate directly in temperature to 0.1°C &0.1 °F - Compatible with the instruments you use including all brands of smart transmitters and PLCs with 14 thermocouple & 9 RTD types.
- Checkout flow and vibration systems - Source & read frequency to 2000 CPM (Counts-Per-Minute), 999.99 Hz, 9999.9 Hz & to 20.000 kHz.
- Troubleshoot loop & wiring problems - ‘Beep’ out connections with the built-in continuity checker
- Simulate pH probes into transmitters & analyzers - Source from 0.000 to 14.000 pH @ 25°C (77°F) corresponding to -414.12 to +414.12 mV
- Measure pressure with optional pressure modules - 32 modules for gauge, differential, compound and absolute pressure
- Easy to read - Turn on the backlight & easily see the display in dark areas of the plant.
- Quickly set any three outputs plus automatic stepping & ramping - Easily set any value with the adjustable “DIAL” plus store any three output settings for instant recall with the EZ-CHECK™ switch. 2, 3, 5 & 11 steps automatically increment output in 100%, 50%, 25% or 10% of span. Select RAMP to smoothly increase and decrease the output. Set step/ramp time to 5, 6, 7, 8, 10, 15, 20, 25, 30 & 60 seconds.
- Measure temperature sensors, frequency pickups, loop currents, voltage levels & pressures - Check the values of your process sensors. Instantly recall MAX and MIN values to see process variability
- Evolutionary design - PIECAL Calibrators are designed and built by members of the same team that designed and built the calibrators manufactured by Fluke* under the Altek* label. The PIECAL 820 improves upon other brands by including a rubber boot, a backlit display with larger digits, higher accuracy and more ranges for greater flexibility.
Each Unit Includes
- Four “AA” Alkaline batteries
- Certificate of Calibration
- Blue Rubber Boot
- Evolution Hands Free Carrying Case
- Evolution mA/V Test Leads - 1 Red & 1 Black Lead with Banana Plugs & Alligator Clips
- Evolution RTD Wire Kit - 2 Red & 2 Black Leads with Banana Plugs & Spade Lugs
