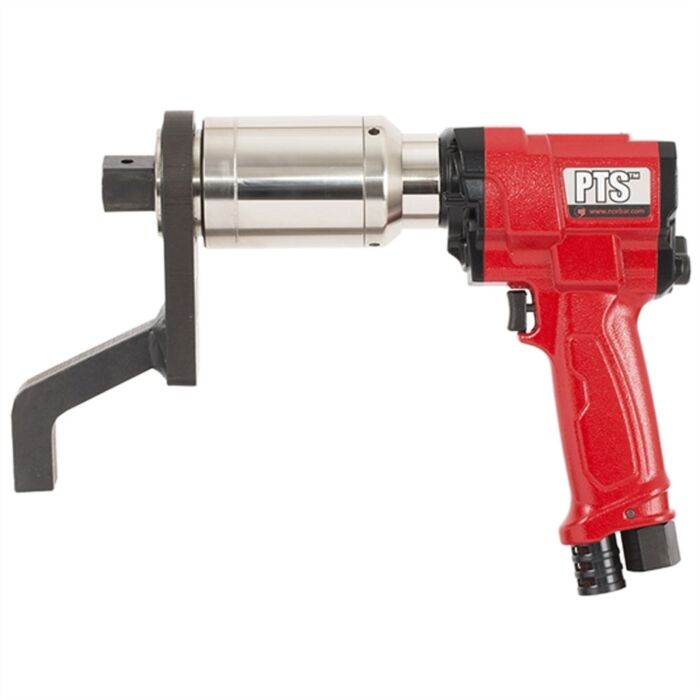

Norbar Torque Tools 180243.B06

PTS-72 Series Pneumatic Torque Wrench, 200.0 - 1000.0 N?m

Order #: 180243.B06

Mfg #: 180243.B06

Questions about availability or need help? Contact Us:

(800) 633-0561
Special Price $5,130.56 Regular Price $5,168.03

Norbar Torque Tools 180243.B06

PTS-72 Series Pneumatic Torque Wrench, 200.0 - 1000.0 N?m

Order #: 180243.B06

Mfg #: 180243.B06

Special Price $5,130.56 Regular Price $5,168.03
The PTS is the result of an extensive design project to produce an efficient air motor, purpose built for this application in an accurate torque tool. The new air motor is then married to Norbar's respected gearbox range, sharing common torque reaction accessories with PTM and EvoTorque® tools.
Availability: Ships in 2-3 Weeks
Available Promotions

Only need this item for a short time? Learn about rentals

Questions about this product? Speak to an expert

Product Highlights

  • Accuracy: ±3%
  • Operates between: 200.0 - 1000.0 N·m 147.0 - 738.0 lbf·ft
  • Designed to offer excellent power-to-weight ratio
  • Up to 2.5kg weight saving compared with PT equivalents
  • Easily accessible switch for forward and reverse operation
  • ±5% repeatability of reading from 20% to 100% of range
  • Air coupling designed for safety and rapid operation
  • Directional exhaust barrel directs exhaust away from operator
  • Replaceable square drive
  • Fast operation for rapid bolt rundown. Up to 60% faster than PT-72 model
  • Non impacting - low vibration levels for comfortable and safe use
  • Steel reactions supplied as standard. Bespoke reactions available
  • Very quiet operation - reducing the need for protection with sound pressure levels from 77dB(A) to 79dB(A)
  • Square Size: 3/4"
  • Max Air Pressure: 6.5 bar
  • Tool Weight: 6.24 kg
  • Reaction Plate Weight: 1.4 kg
  • Free Speed: 20.4 rpm
