Noisecom UFX7110 Used for Sale

Product Highlights

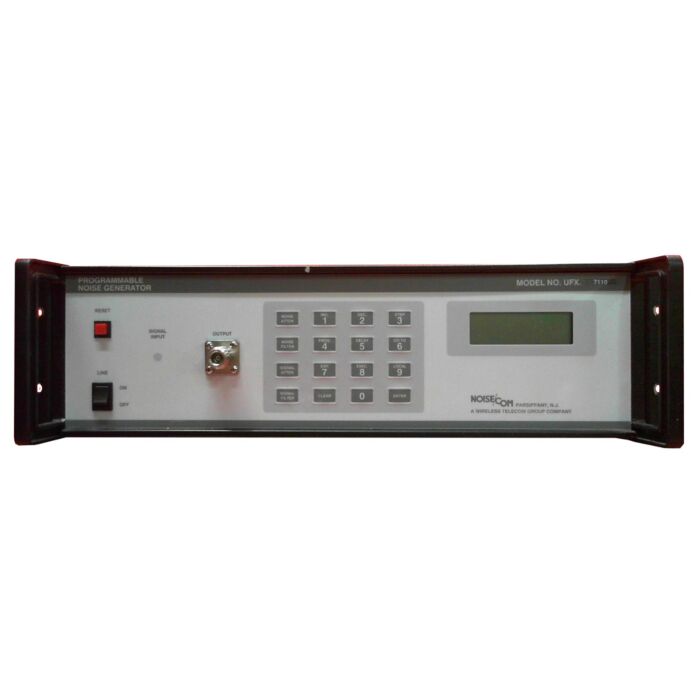

The UFX7110 is a used 1.5 GHz Noise Generator from Noise Com. A noise signal generator is a type of electronic test equipment that produces a noise, or random signal, to test an electronic product's frequency response, noise figure, and other important parameters.

Additional Features:

• Frequency range: 100 Hz-1.5 GHz
• Power(dBm): +10
• dBm/Hz: -82
• Flatness (dB): ±1.5
• Output: White Gaussian noise
• Control: Local and IEEE-488
• Impedance: 50 ohms (others optional)
• Typical VSWR: 1.5:1
• Standard output connector: SMA female
• Power 120 VAC, 60 Hz

Applications:

• Electromagnetic susceptibility
• Filter testing
• CATV gain (tilt) alignment
• Image and spurious rejection tests
• GPS receivers
• Disk drive testing
• Spectrum analyzer calibration
• Jamming systems
• Signal to noise measurement

The UFX7110 instrument contains a Noise Com amplified noise source that is tuned to provide the best flatness at the instrument output. The amplifier is optimized to deliver an output with a Gaussian amplitude distribution. Noise output power level can be adjusted from 0 to 127 dB in 1 dB (optionally 0.1 dB) steps.

The UFX7000 Series noise generating instruments are extremely easy to use, combining dedicated keys for control of operations and programming with a large 4 x 20 character LCD display for instant status information. The instruments are direct replacements for Noise Com's NC7000 Series instruments.
