Product Highlights
- Best configuration flexibility
- Custom waveform/profile generation
- Microsecond voltage, current & mode transition times
- Built-in digital measurements with charting & scope displays
- 3 test system control options including a Touch-Panel interface Expandable from 12 to 252kW with 40, 120, 240 or 600V bi-directional DC loads 87% efficiency of discharge power returned to AC mains
- Multiple safety layers to protect battery being tested
- Battery emulation & burn-in applications

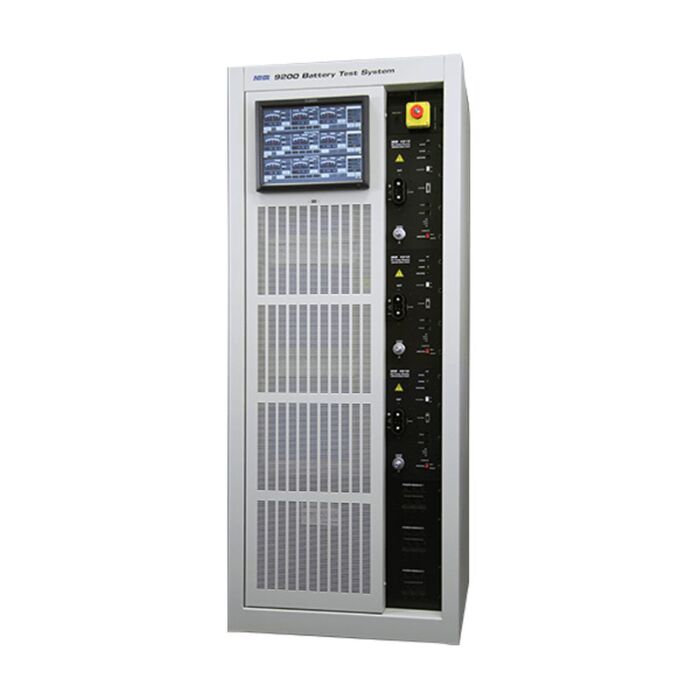

The 9200 Battery Test System is designed for all battery chemistries including lead-acid, nickel-cadmium and lithium-ion. The 9200 is ideally suited for applications where maximum tester configuration flexibility is needed to adapt to a broad range of battery voltage, current and power requirements now and in the future. Another good fit is where high-speed set and measurement are necessary to better characterize battery transient performance. A third application is where easier and faster test program creation is desired. All applications benefit from the 9200 discharge power recycling capability, which results in both a cooler test environment and system cost recovery in a few years. Other 9200 applications such as battery emulation, battery charger test and power supply burn-in are covered in supplemental product bulletins.
9200 Testers are configured with independent, 12kW DC bi-directional loads that can be dynamically programmed both within a cabinet and from cabinet
