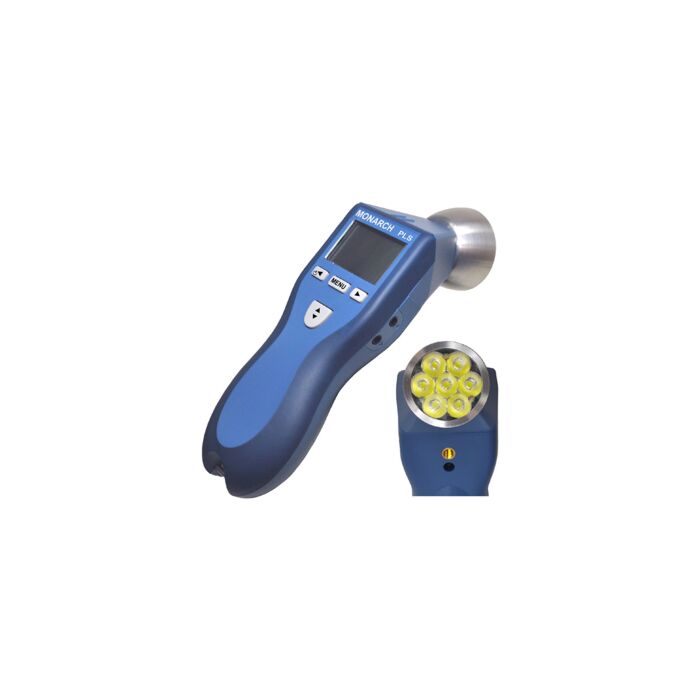

Monarch Instrument 6235-010-Strobes And Tachometers

Diagnostic Inspection and RPM Checks
Accepts Remote Sensors
Tripod Mounting Bushing (1/4-20)
CE Marked, RoHS Compliant
NIST Certificate Included
Compact Pocket Sized Package
Intuitive One Hand Operation
Flash Range 30 - 300,000 FPM/RPM
Display Multiline LCD
Accuracy/Resolution .002% of setting or +/- 1 lsd/ 0.01 FPM
Light output 1800 Lux @ 6000 FPM, 8 inches (20cm)
Flash Energy/Duration Menu adjustable brightness 0.5 to 18 degrees
Light Source 7 LED Array
Color Temperature 5600°K
External Triggers in/out TTL (24Vdc Max) Input. Provides 3.3 Vdc TT output
Tachometer Mode 0-250,000 RPM use with optional remote sensor
Programmable Memory Yes
Internal Phase Shift Yes
Phase Delay - Degrees 0.1 to 359.9 degrees
Time Delay - mSecs. 0.01 to 1000 msec.
Operating Time 5-6 hours typical @ 1800 FPM
Power Supply Internal Lithium Ion rechargeable batteries
Weight/ Size (L x W x H) 0.57 Lbs (259g) / 7.75" x 2.75" x 2.3" (197 x 70 x 58 mm)

Monarch Instrument 6235-010
