Overview

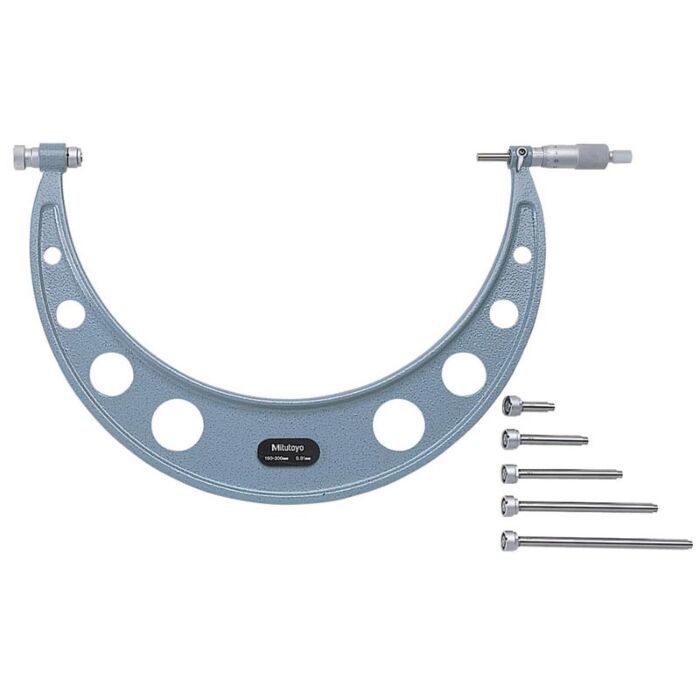

The Mitutoyo metric outside micrometer features a ratchet stop function and interchangeable anvils for measuring a wide range of workpiece sizes and material types with precision. Available in metric measurements.
The Mitutoyo ratchet stop outside micrometer in metric scale is ideal for measuring metal and non-metal workpieces by controlling the amount of force applied by the spindle. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements. Interchangeable anvils allow for measuring a wide range of workpiece sizes.
Range: 150-300mm
Accuracy: +/-8um
Mass: 2.65kg
Flatness: 0.6um
Measuring Force: 5-10N
Parallelism: 5um or less
Technology: Mechanical
Units: Metric
SPC Output: No
Ratchet/Thimble: Ratchet Stop
Graduation: 0.01mm
Measuring Faces: Carbide tipped (spindle only)
Ratchet mechanism provides an audible click to ensure measurement is being performed at a constant pre-set force
Metric scale is laser etched on thimble for fast and easy reading
Carbide facing on the spindle resists wear to keep surfaces flatter with longer accuracy
Speeder is always available for quick rotation of the spindle
