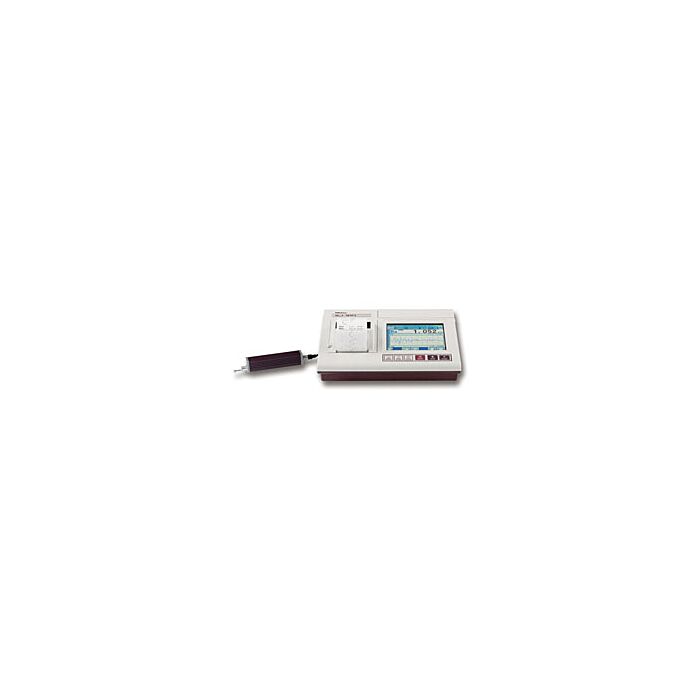

Mitutoyo 178-573-02A
Surface Roughness Tester

Order #: 178-573-02A

Mfg #: 178-573-02A

Questions about availability or need help? Contact Us:

(800) 633-0561
Special Price $5,481.60 Regular Price $5,710.00

Mitutoyo 178-573-02A

Surface Roughness Tester

Order #: 178-573-02A

Mfg #: 178-573-02A

Special Price $5,481.60 Regular Price $5,710.00
Availability: Ships in 3-4 weeks

Product Highlights

  • The handheld data processing unit and the 5.7=inch color graphic LCD touch=panel provide superior readability and operability. The LCD also includes a backlight for improved visibility in dark environments.
  • The excellent user interface provides intuitive and easy=to=understand operability.
  • Complies with the following standards: JIS (JIS=B0601=2001, JIS=B0601=1994, JIS B0601= 1982), VDA, ISO= 1997, and ANSI.
  • The Measure=Start and other frequently used buttons are strengthened to resist wear and the detrimental effects of workshop contaminants.
  • Equipped with a large=capacity battery allowing approximately 1500 measurements when fully charged.
  • Includes convenient carrying case for protection in the field.
  • A high=speed printer is built into the main unit. Either landscape or portfolio mode can be selected according to the application. Paper saving mode is supported.
  • The display interface supports 16 languages, which can be freely switched.
  • 10 sets of measurement conditions can be saved in the measurement unit–an optional memory card can save measurement conditions and the measured profile.
  • Drive Unit Retractable type (178=235)
  • Detector 4mN type(178=390)
  • Display Unit Standard type with printer
  • Detector: Conical taper angle 90°
  • Stylus Tip Radius 5µm
  • Detector measuring force 4mN
