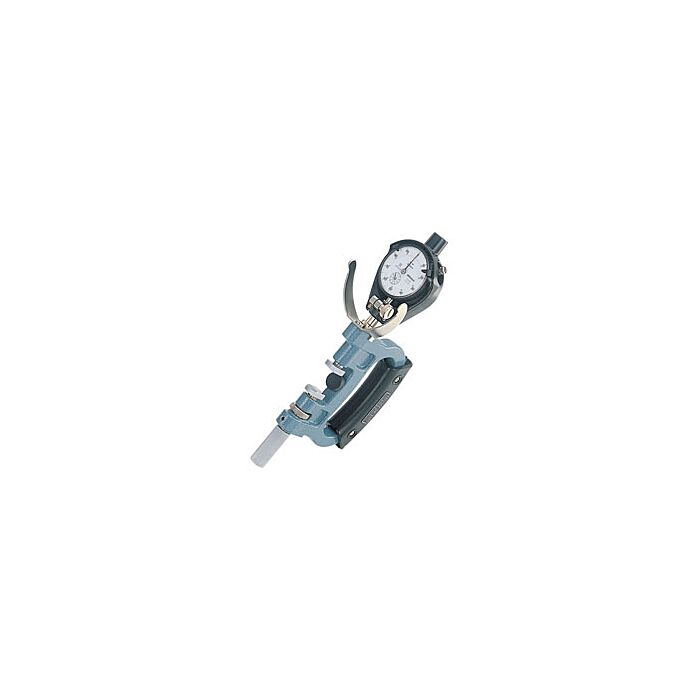

Mitutoyo 201-107 Snap Gage, 150mm-175mm Range

Product Highlights

• Designed for quick GO/NG judgment of diameters of cylinders and shafts in machining processes.
• Dial indicator is optional.
• Anvil retracting stroke: .078/2mm
• Anvil positioning range: 1/25mm
• Wide (.53 x .47/13.5 x 12mm), flat carbide anvils.
• Both front edges of the anvil are chamfered for easy insertion.
• Range 150-175mm
• Parallelism 5µm or lessµm
• Measuring Force 15N±3N
• Recommended Dial Indicator 2046SB (0.01mm reading), 2109SB-10 (0.001mm reading)
