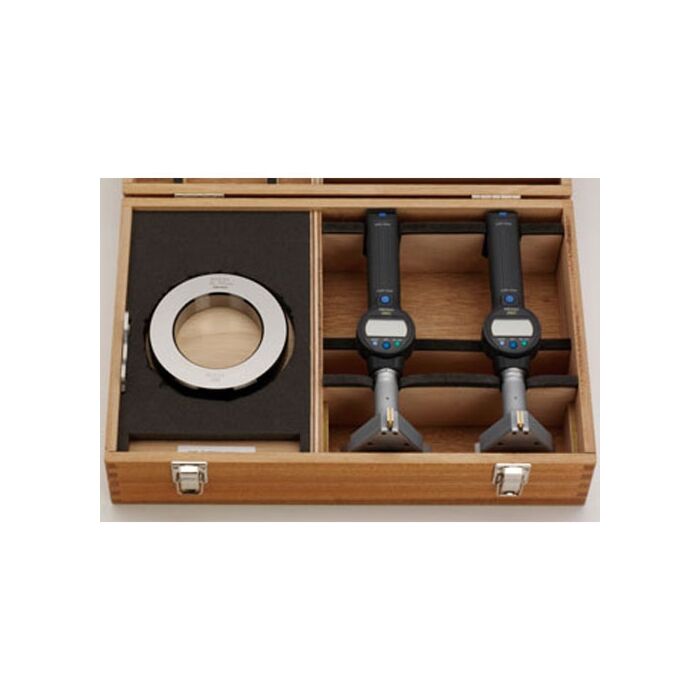

Mitutoyo SBM-113CX
Digital Bore Gauge,100-113mm Range

Order #: 568-374

Mfg #: 568-374

Questions about availability or need help? Contact Us:

(800) 633-0561
Special Price $2,016.00 Regular Price $2,100.00

Mitutoyo SBM-113CX

Digital Bore Gauge,100-113mm Range

Order #: 568-374

Mfg #: 568-374

Special Price $2,016.00 Regular Price $2,100.00
Availability: Ships in 3-4 weeks

Product Highlights

  • TiN-coated measuring contact points provide excellent durability and impact resistance and allow the instrument to measure right to the bottom of a blind hole.
  • Large LCD digits of 8.5mm height for error-free reading.
  • 330-degree rotatable display unit for easy reading at any angle.
  • GO/NO-GO judgment function.
  • The ABSOLUTE linear encoder eliminates the fear of over-speed errors.
  • With SPC data output.
  • Setting rings for origin point setting are optional.
  • Can measure deep holes by attaching an optional extension rod.
  • Measurement can be taken closer to the bottom of a blind bore.
  • Supplied in fitted wooden case.
  • Range 100-113mm
  • Head Assembly Order No. 04AZA941
  • Accuracy 6µm
  • Mass 900g
