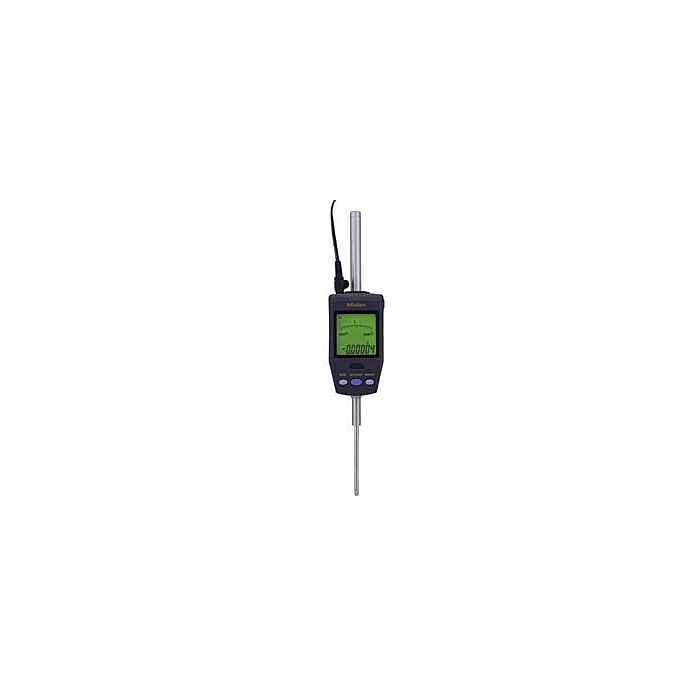

Mitutoyo 543-564A Digimatic Indicator .00002" ID-H560E

Product Highlights

• This new-generation digital indicator offers the excellent accuracy and functionality expected from this class of indicator
• Take advantage of its high accuracy backed up by 0.5ìm / .00002" resolution, remote control functionality via a handheld controller (or an RS-232C interface) and easy runout measurements with the well-established analog bar display
• The maximum, minimum, or runout value can be displayed during measurement
• GO/±NG judgment is performed by setting the upper and lower tolerances
• If a judgment result is out of tolerance, the display backlighting changes from green to red, so tolerance judgment can be made at a glance.
• With SPC data output
• With RS-232C input/output
• Model ID-H560E
• Accuracy 0.0025mm
• Range 0-2.4in 0-60.9mm
• Resolution .0002,.00005,.0001in 0.0005,0.001mm
