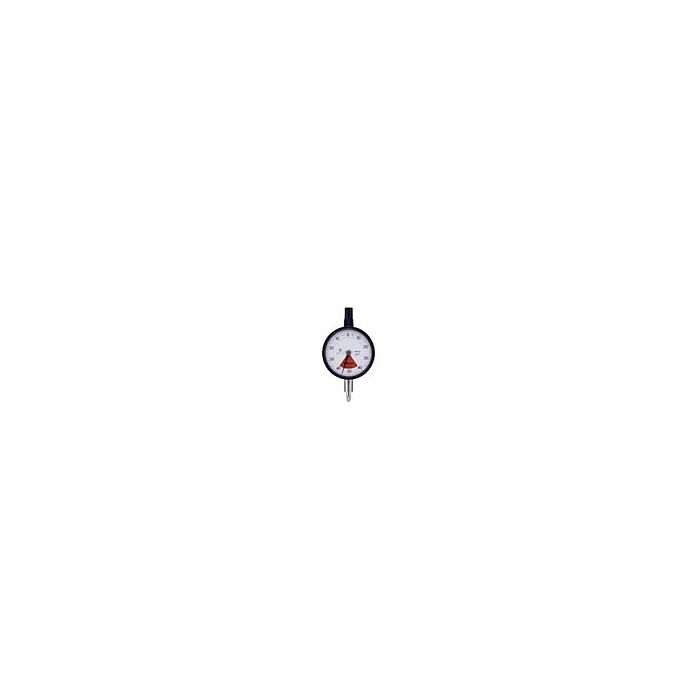

Dial Indicator w/Lug
Order #: 2900S-70
Mfg #: 2900S-70
- An unique shock-proof mechanism is incorporated, providing improved immunity to shock due to sudden spindle retraction caused by high impact.
- The crystal is hard coated for durability and scratch resistance.
- Approximately 40% lighter than the conventional dial indicator.
- Provided with an improved resistance to shop floor contaminants such as water and dust.
- Due to the spindle bushing being offset from the stem, spindle movement will not be hindered or jammed when clamping along the stem.
- A pair of limit hands are provided for quick and easy tolerance judgment (GO/±NG).
- Graduation 0.001mm
- Range/Full Stroke 0.08/0.1mm
- Type with lug
- Dial Reading 40-0-40
- Accuracy 0.003mm
- Stem ø8mm, M2.5x0.45 Thread
- Force 2.0N or less
