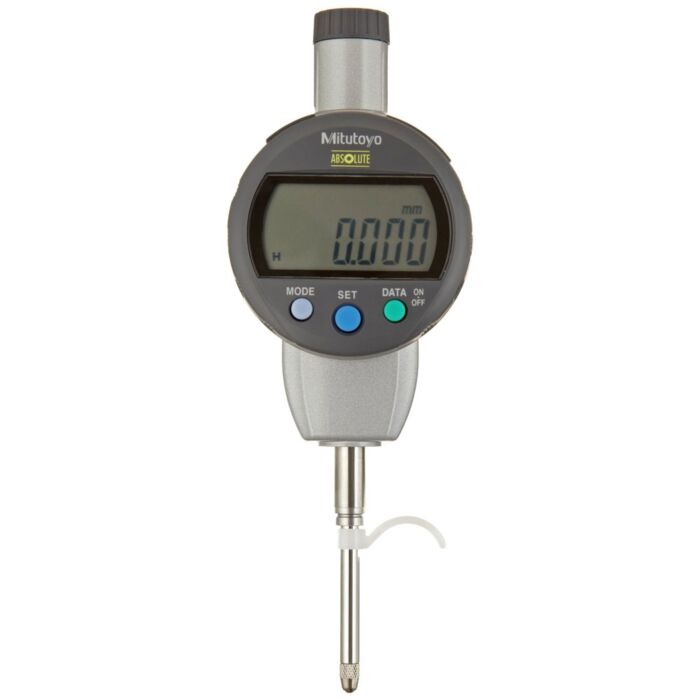

Mitutoyo 543-470B
Digital Indicator w/SPC Output

Order #: 543-470B

Mfg #: 543-470B

Questions about availability or need help? Contact Us:

(800) 633-0561
$645.00

Mitutoyo 543-470B

Digital Indicator w/SPC Output

Order #: 543-470B

Mfg #: 543-470B

$645.00
Availability: Ships in 3-4 weeks

Choose Your Options:

Add Calibration

You have chosen to add the following Calibration Services to Your Order

Make sure your instrument is calibrated and ready to use the minute you open the box by adding our expert calibration service. Why Calibrate? For a complete descriptions of Transcat Service Levels, click here.

Already have this this item and need calibration? Request a calibration quote

Product Highlights

  • Resolution *Switchable*0.01mm
  • Range 0-25mm
  • Contact PointStem Ø8mm M2.5 x 0.45 Thread
  • Accuracy 0.003mm
  • Measuring Force Less than 1.8N
  • Type ISO/JIS
  • As compact as standard Series 2 dial indicators.
  • Large, easy-to-read LCD.
  • GO/±NG judgment can be performed by setting upper and lower tolerance limits. The judgment result (GO/±NG) can be displayed in full-size characters.
  • The positive/negative count resulting from the spindle’s up/down movement can be toggled. Internal calculations using the simple formula of [F(x)=Ax)] are available
  • Employing the ABSOLUTE linear encoder, the ID-C always displays the spindle "Absolute Position" from the origin at power-on. Also unlimited response speed eliminates over-speed errors.
  • The ID-C indicator face can be rotated 330° to an appropriate angle for easy reading.
  • With SPC data output.
