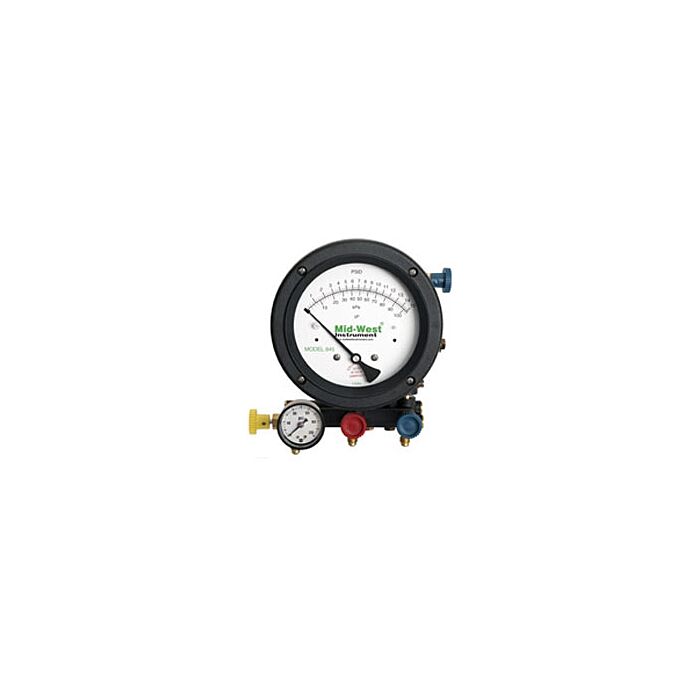

Mid-West Instrument 845-5 BackFlow Test Kit,500PSIG

Over 30 Years of Input from Backflow Technicians
(5) Valve Test Kit
Specially Designed for Testing Backflow Prevention Assemblies
Soft-Seated Brass Needle Valves (with replaceable valve seats)
Test kit is protected with 90 micron filters to minimize plugging with scale, sand, etc. Filter elements can be cleaned or replaced
Portable / Removable from Case
Durable Molded Plastic Carrying Case
Improved Case with Storage Compartments for Fittings & Tools
Test Procedures are Laminated in Clear Plastic
5 Year Warranty
Gauge Type Diaphragm Differential Pressure
Dial Size & Range (4 1/2") 0-15 PSID / 0-100 KPA
Differential Pressure Accuracy ± .2 P.S.I.D. (Descending)
Working Pressure: 200 PSIG
Body Material: Glass Reinforced Engineering Thermoplastic
Wetted Internals: EP Elastomers, Brass and 316 S.S. Metal Parts
Line Pressure Gauge: 1 1/2" 0-200 PSIG
Hoses & End Fittings: Buna-N jacket and liner. Schrader 1/4" brass coupler -
Hose Length: Three (3) each / 5' long (color-coded)
Bleed Tube, One each / 4' long clear bleed tube.
Adaptor Fittings: (3) sets of brass fittings provided for hookup to all standard size test cocks
Gauge Weight: 3.6lbs / 1.6kg
Case: Durable Molded Plastic
Size: 18 1/2"L x 9"W x 9 3/4"H
Temperature Limitations: Maximum 150°F/65°C

Mid-West Instrument 845-5
