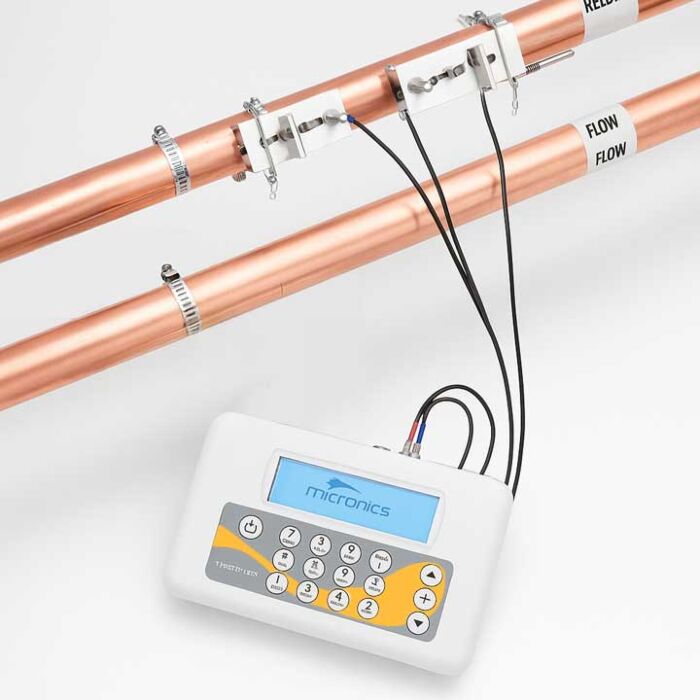

The Portaflow range brings simplicity to the non-invasive measurement of liquid flow and hydronic energy. Portaflow offers the user quick and accurate flow and energy measurement with its easy to follow menu and simple set up. Results can be achieved within minutes of opening the case!
Compact, rugged and reliable, the Portaflow range has been designed to provide sustained performance in industrial environments.
- Ultrasonic, cross-correlation flow measurement
- Reynolds number correction
- Easy to install
- Simple to follow set-up menu
- Clamp-on flow and temperature sensors (IP54 with IP68 option)
- Integral heat and energy meter functions
- For hot and cold liquid applications
- PF222A with 'A' Transducers: 13mm OD to 115mm OD pipes IP54 with IP68 option.
- PF222B with 'B' Transducers: 50mm OD to 1000mm OD pipes IP54 with IP68 option.
- Transducer Operating Temp: 'A'&'B' -20C to +135C.
- Turn Down Ratio: 100:1.
- 3 x Pulse Output: Pulse or Frequency. Opto-isolated MOSFET relay.
- Max Current: 150mA. Isolation: >100V AC/DC. Pulse for volume flow and alarms, frequency for flow rate. The pulse outputs can be configured including: flow totals, energy, loss of signal, low flow alarms.
- 4-20mA Output: 4-20mA flow proportional output, optically isolated 1500 volts, 620 ohms maximum load.
- Volumetric mode: Pulse repetition rates: up to 50 pulses/sec (depending on pulse width).
- Frequency mode: Max. pulse frequency: 200Hz.
- Flow at max frequency: User selectable.
Industries:
- Water
- Building Services
- Energy Management
- Power Generation
- Chemical
- Pharmaceutical
- Petrochemical
- Food
Recommended for:
- Potable water
- River water
- Cooling water
- Demineralised water
- Water/glycol solutions
- Hydraulic oil
- Diesel and fuel oils
- Chemicals
- Petroleum products
Application/use:
- HVAC and energy system audits
- Check system meters
- Pump verification
- Boiler testing
- Leak detection
- Filter sizing
- Ultrapure water measurement
- Heavy fuel oil metering
- Condensate measurement
- Balancing systems
- Clean in place evaluation
- Fire system testing
- Hydraulic system testing
