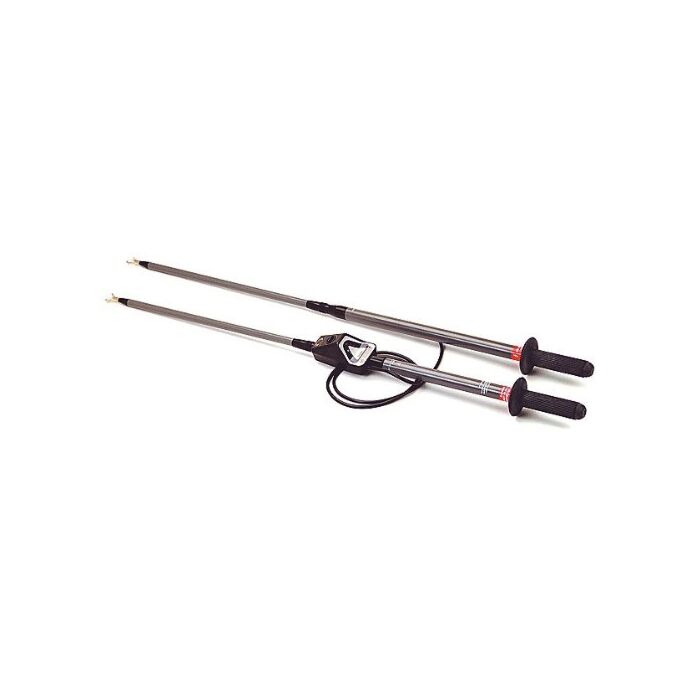

Megger 510836-1 DETEX LED Phasing Tester, 4.16 to 34.5kV
DETEX LED Phasing Tester 4.16 to 34.5kV

Order #: 510836-1

Mfg #: 510836-1

Questions about availability or need help? Contact Us:

(800) 633-0561
$2,610.00

Megger 510836-1 DETEX LED Phasing Tester, 4.16 to 34.5kV

DETEX LED Phasing Tester 4.16 to 34.5kV

Order #: 510836-1

Mfg #: 510836-1

$2,610.00
Use the neon voltage detector for indoor testing of grounded AC systems. A bright neon bulb lights at a successful self-test before use, and again if there is live voltage during testing.

Be sure to Login to transcat.com for preferred member pricing.
Availability: Ships in 3-4 weeks

Choose Your Options:

Add Calibration

You have chosen to add the following Calibration Services to Your Order

Make sure your instrument is calibrated and ready to use the minute you open the box by adding our expert calibration service. Why Calibrate? For a complete descriptions of Transcat Service Levels, click here.

Already have this this item and need calibration? Request a calibration quote

This product is available for shipping to the United States and Canada only.

Product Highlights

  • Phasing tester for detecting phase to phase voltage to test high-voltage fuses, check for correct phase connections, and to test for the absence of voltage on de-energized lines or apparatus
  • LED lamps clearly indicate six different voltage ranges
  • Consists of two 1092mm (43 in.) fixed-length poles with hand guards connected by a 1372mm (54 in.) insulated cable
  • Measures voltage from 4.16 to 34.5kV
  • Spans up to 2m (7 ft.) to connect two phases under test

Each Unit Includes

  • 510836-1 ETEX LED Phasing Tester
  • Steel carrying case
  • Instructions
