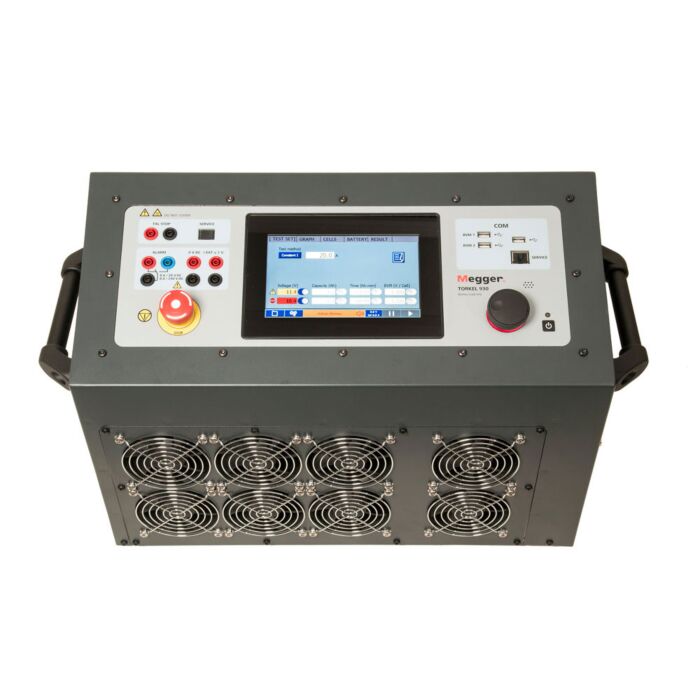

Megger TORKEL 910 Battery Discharge Test Systems

Product Highlights

The TORKEL900 series of battery discharge test systems are Megger's fourth generation of battery discharge analyzers. Discharge testing is the only test method that provides a comprehensive insight into battery capacity, and is therefore an essential part of vigorous battery maintenance programs.

Tests with the TORKEL900 series can be conducted at constant current, constant power, constant resistance, or in accordance with a pre-selected load profile. What's more, if you connect the BVM battery voltage monitor to a TORKEL900 unit, the TORKEL becomes a complete standalone discharge test system.

With the TORKEL900 series, you won't need to disconnect the battery from the equipment. The TORKEL900 units use a DC clamp-on ammeter to measure the total battery current while regulating it at a constant level. If the voltage drops to a level slightly above the final voltage, the TORKEL issues an alarm and if there is a risk of deep discharging the battery, the TORKEL stops the test. All results are stored in the TORKEL and can easily be transferred to a PC via a USB drive.

Additionally, testing times are much shorter with the TORKEL900 series, thanks to their high discharge capacity. Discharging can take place at up to 220 A, and if higher current is needed, two or more TORKEL units or extra load units (TXL) can be linked together. The TORKEL900 series has three models available: 910, 930, and 950, depending on the maximum current (up to 220 A), voltage (up to 500 V), and functionality required.

PowerDB is a PC software for BVM and TORKEL 800 / 900-series. For BVM and TORKEL 800 series it works for controlling, data management and report handling. For TORKEL 900-series only for data management and reporting.

Features

• Batteries can be tested in service
• Dynamic discharge technology - full power at all voltages
• Safety in all details, e.g. detection of blocked airflow
• Real-time monitoring during test
• Easy report function and calibration
• Easily expandable for larger battery banks using TXL extra load units
• Battery cell monitor control integrated in the system
• Can be used with Lead-Acid, Ni-Cd, and other battery types
• TXL STOP- Output used for stop discharging from an external device (e.g. TXL). Galvanically isolated.
• SERVICE- Connector for service purposes only.
• ALARM- Output equipped with a relay contact for triggering an external alarm device.
• DC OUT- 9 V output for external current clamp.
• I EXT ≤ 1 V- Input used to measure current in an external path by means of a clamp-on probe or a current shunt.
• Display- Touch screen 7".
• BVM1, BVM2- USB connections for BVM units.
• USB connection- For USB memory stick.
• Ethernet connection- For reports connected to PC.
• EMERGENCY STOP- Push to stop. Reset by turning it clockwise.
• Control knob- For entering settings, etc. Press to confirm a setting.
• Buzzer- For alarms.
• ON/OFF switch

Model

• TORKEL - 910
• Current (max) - 110 A
• Voltage (max) - 300 V
• BVM functionality - No
• Charging measurement - No
• Full report functionality - No
