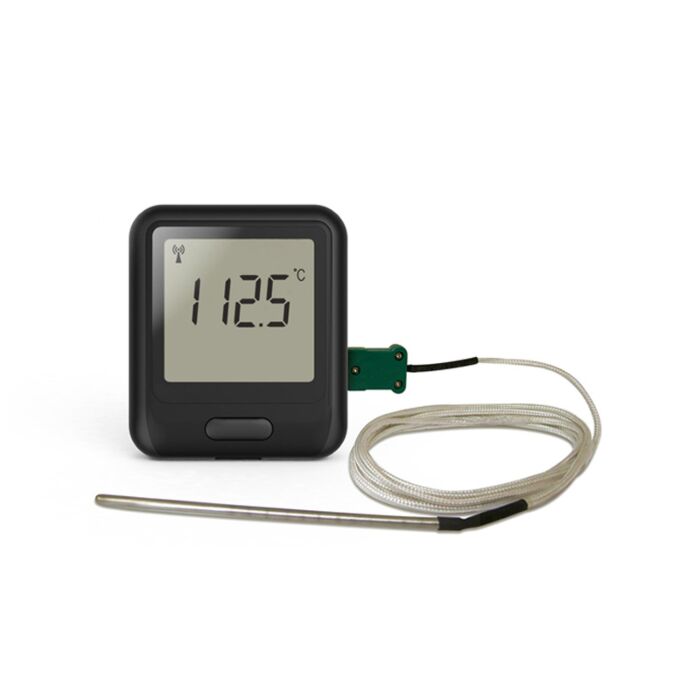

Lascar EL-WIFI-21CFR-TC
21CFR Remote WiFi Temperature Sensor External Thermocouple

Order #: EL-WIFI-21CFR-TC

Mfg #: EL-WIFI-21CFR-TC

Questions about availability or need help? Contact Us:

(800) 633-0561
$264.49

Lascar EL-WIFI-21CFR-TC

21CFR Remote WiFi Temperature Sensor External Thermocouple

Order #: EL-WIFI-21CFR-TC

Mfg #: EL-WIFI-21CFR-TC

$264.49
Availability: Ships in 3-4 weeks

Product Highlights

  • Can be installed as part of a 21CFR compliant system with additional controls including permission-based use, authority level sign-off and full system audit
  • Supplied with external K-Type Thermocouple Probe 0 to +200°C (+32°F to +392°F), see TC probes datasheet for details
  • Thermocouple probe temperature measurement range -270 to +1372°C (-454 to +2501°F) (allows interchangeable probes)
  • Easy sensor set-up using free 21CFR WiFi Sensor Software
  • Wirelessly stream and view data on the EasyLog 21CFR Cloud
  • Configurable high and low alarms with indicator

The EL-WiFi-21CFR-TC measures the temperature of the environment in which the probe is situated. Featuring an industry standard miniature thermocouple connector, the device is compatible with K, N, J and T-type probes.

Data is streamed wirelessly over any compatible WiFi network to be viewed on the 21CFR Cloud. During configuration, the sensor will search for an existing wireless network whilst physically connected to the PC. It can then be placed anywhere within range of the network. If the sensor temporarily loses connectivity with the network, it will log readings until it is able to communicate again with the 21CFR Cloud (max 30 days at 10-second sample interval).

The sensor is IEEE 802.11bgn* (2.4GHz) compliant, supports WEP, WPA/WPA2 encryption and enterprise networks (PEAP, TTLS, FAST).

The EL-WiFi-21CFR-TC has a protection rating of IP40 and the probe tip IP67. The unit is freestanding, but it can be attached to a wall or surface using the bracket provided. The unit can be clipped in and out of the bracket as required.
