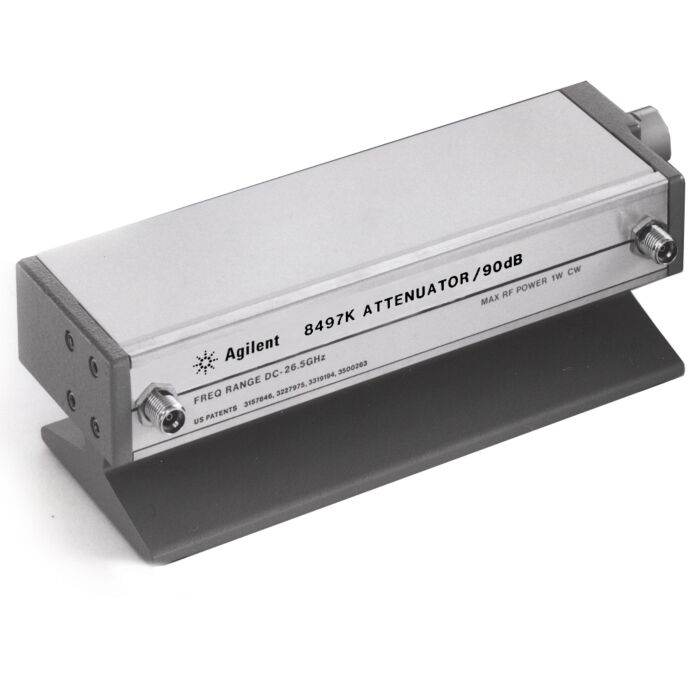

Keysight 8497K Programmable Step Attenuator, DC to 26.5GHz
Programmable Step Attenuator DC to 26.5GHz
Order #: 8497K
Mfg #: 8497K
$3,386.00
Keysight 8497K Programmable Step Attenuator, DC to 26.5GHz
Programmable Step Attenuator DC to 26.5GHz
Order #: 8497K
Mfg #: 8497K
$3,386.00
Availability: Call for availability
This item is available as RENTAL at
Call for price
Shop now
Product Highlights
- Frequency range: dc to 26.5 GHz
- Insertion loss at 0 dB: 0.4 dB + 0.09 dB/GHz
- Maximum SWR: 1.25 to 6 GHz, 1.45 to 12.4 GHz, 1.6 to 18 GHz, 1.8 to 26.5 GHz
- Repeatability life: 0.03 dB max to 18 GHz, ±0.05 dB max to 26.5 GHz 5 million cycles per section (typical)
- 5 million cycles per section
- Maximum RF input power: 1 W (average), 100 W (peak)
- Connector type: 3.5 mm female
- Programming connector: 12-pin Viking, optional 14-pin DIP
