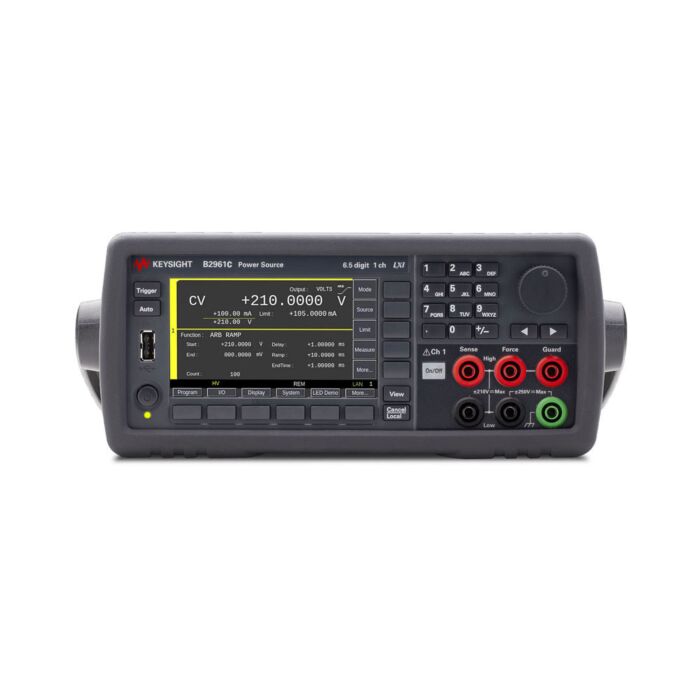

The Keysight 1 channel B2961C 6.5 Digit Low Noise Power Source is a bench-top power supply that provides groundbreaking capabilities and previously unavailable functions. It stands out through unique features such as bipolar current sourcing and sinking, programmable output resistance, and an integrated time-domain waveform viewer accessible via its graphical user interface (GUI). It pairs ideally with instruments such as network analyzers, spectrum analyzers, digital multimeters, and nano-voltmeters.
Applications for the B2961C include high-precision analog IC and circuitry testing, medical device applications, solar cell evaluation and interface circuitry, research and educational environments, advanced materials testing, and battery management systems, among others.
Additionally, the B2961C supports remote control through Keysight's PC-based PathWave BenchVue software, PW9251A PathWave IV Curve Software, or any LXI-compatible web browser. These capabilities streamline the incorporation of measurement data and graphical outputs into reports and presentations.
- Number of channels: 1
- Best-in-class 6.5 digit resolution (100 nV/10 fA minimum resolutions)
- Wide bipolar (4-quadrant) voltage/current ranges (210 V/3 A DC, 10.5 A Pulse)
- Ultra low noise filter (10 µVrms, 1 nV/√ Hz at 10 kHz)
- Intuitive graphical user interface with wide 4.3-inch color LCD
- Multiple viewing modes: single, dual (B2962C only) and graph
- Convenient 4.5 digit voltage/current monitor
- Time domain waveform viewer for quick check and debug
- Precision 1 mHz -10 kHz arbitrary waveform generation capability
- Flexible programmable output resistance function
- Supports two test modes, constant and V/I emulation
- Standard interfaces: USB 2.0, LAN (LXI class C compliant), digital I/O and GPIB
- Optional external filters HC-ULNF, ULNF and LNF provide low-noise performance
Applications
- Analog / Mixed-Signal ICs and interface circuits
- Noise-sensitive device characterization
- Materials, new device / research & development
- Sensor or instrumentation front-end characterization
- Battery management, solar-cell / photovoltaics, energy research
- Emulation and circuit behavior simulation
Each Unit Includes
- B2961C Low Noise Power Source
- Power cable
- USB cable
- Quick Reference (English)
