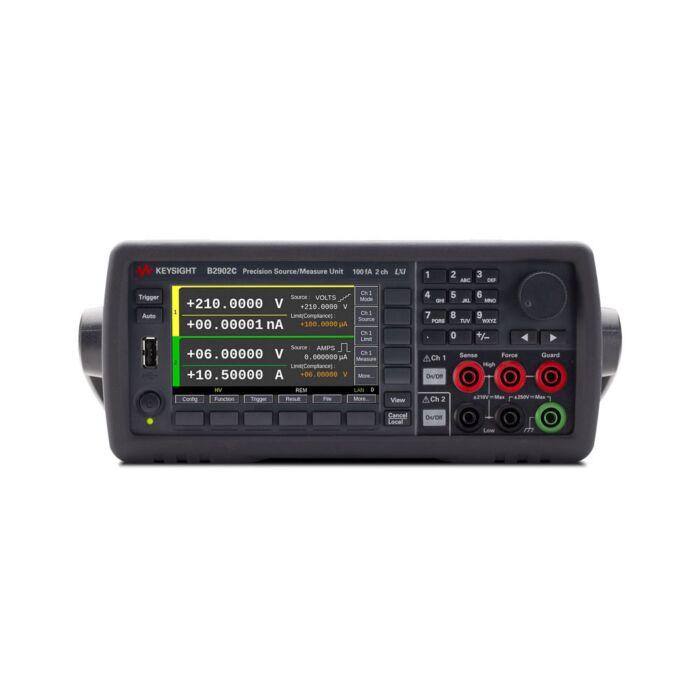

The Keysight B2902C is a versatile, dual-channel precision Source/Measure Unit (SMU) optimized for efficient and accurate voltage and current sourcing and measurement in laboratory, R&D, and automated testing environments. It supports a maximum voltage of ±210 V and current capabilities up to ±3 A DC or ±10.5 A pulsed, accommodating a wide range of device testing requirements, including semiconductors, passive components, and precision electronic devices. The dual-channel capability allows independent operation, facilitating tests on devices with multiple terminals.
The B2902C offers excellent precision, with measurement resolution down to 100 fA for current and 100 nV for voltage. Its integrated four-quadrant functionality greatly simplifies complex IV measurement setups, removing the need for multiple separate instruments and significantly enhancing measurement reliability and repeatability. Built-in arbitrary waveform generation (AWG) and sweep functions—including linear, logarithmic, and pulsed sweeps—provide extensive flexibility for dynamic electrical characterization, with waveform definitions supporting up to 100,000 programmable steps.
The intuitive 4.3-inch color LCD graphical user interface (GUI) offers multiple viewing modes, including dual-channel views and graph displays, enabling quick setup, data visualization, and interactive testing from the front panel. With fast digitizing capabilities reaching up to 50,000 points per second, the unit efficiently captures transient phenomena. It also supports advanced connectivity through USB, LAN, and GPIB interfaces and comprehensive software tools such as PathWave BenchVue, PathWave IV Curve, and EasyEXPERT group+, making the B2902C an effective solution for both benchtop use and integrated automated testing systems.
- Number of Channels: 1 or 2
- Max Voltage: 210 V
- Output Range Max Current (DC): 3.03 A
- Output Range Max Current (pulse): 10.5 A
- Measurement Resolution: 6.5 digit
- View Modes: Single, Graph and Dual
Applications
- Semiconductor Device Characterization
- Research & Development Laboratories
- Test & Measurement in Production /Automated Test Setups
- Green Energy / Power-Electronics Device Testing
- Materials & Device Research
- Pulse Testing / Transient Analysis
Each Unit Includes
- B2902C Source Measure Unit
- Power cable
- USB cable
- Quick Reference (English)
