Keysight Technologies N4001A
10MHz to 18GHz SNS Noise Source Nominal ENR 15dB(MAIN)
Order #: N4001A
Mfg #: N4001A

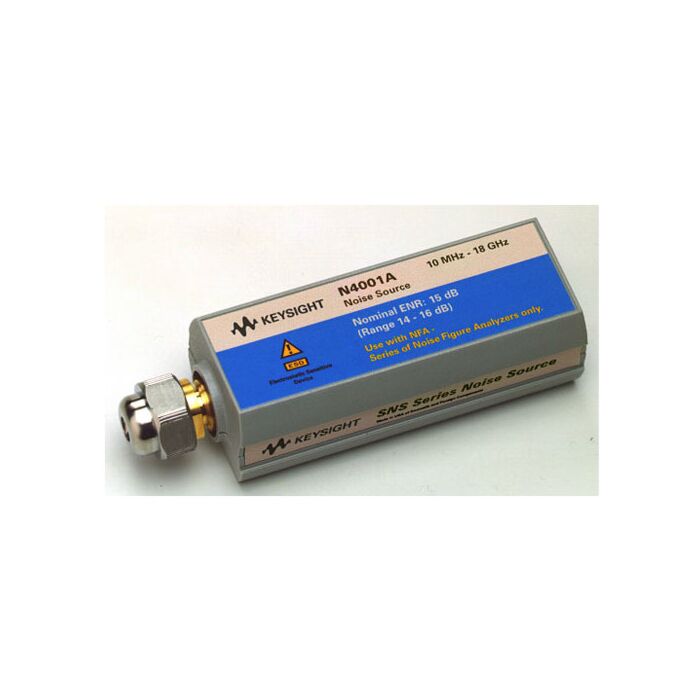

The SNS series N4001A noise source is ideal for general purpose use with a low reflection coefficent and a nominal ENR of 15 dB from 10 MHz to 18 GHz. DUT's with noise figures up to 30 dB can be measured accurately and reliably with this device. The N4001A has a selection of connectors, with an APC 3.5(m) connector as standard.
Availability: Item ships in about Ships in 4-6 weeks
Only need this item for a short time?
Questions about this product?
- Electronic storage of Excess Noise Ratio (ENR) calibration data decreases the opportunity for user error
- Automatic download of ENR data to the NFA speeds overall set-up time
- Temperature compensation improves measurement accuracy leading to tighter specification of device performance
- 3.5mm connector ships standard, optional Type-N connector is available as Option 001
