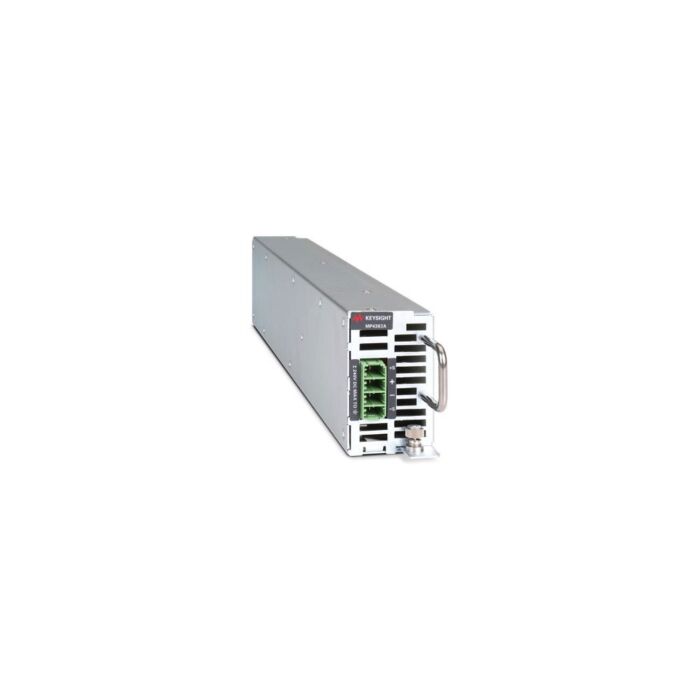

Keysight MP4362A Solar Array Simulator Module, 0-130V, 0-8A

Product Highlights

The Keysight MP4362A is a 1000 W solar array simulator DC power module that simulates the output characteristics of a solar array. The MP4361A is primarily a current source with very low output capacitance. It offers fast I-V curve changes allowing you to accurately simulate the output of different solar arrays under various environmental conditions (e.g., temperature, age, eclipse, spin, etc.).

Features

Output Ratings

• Max. Power: 1000 W
• Max. Voltage: 130 V
• Max. Current: 8 A

Programming Accuracy at 23 degree C ±5 degree C

• Voltage (Fixed Mode): 0.075% + 25 mV
• Current (Fixed Mode): 0.2% + 10 mA

Output Voltage Ripple and Noise

• Voltage noise peak to peak: 500 mV
• Voltage noise RMS: 50 mV

Output Current Ripple and Noise (Simulator/Table mode)

• Current noise peak to peak: 48 mA
• Current noise RMS: 6 mA
