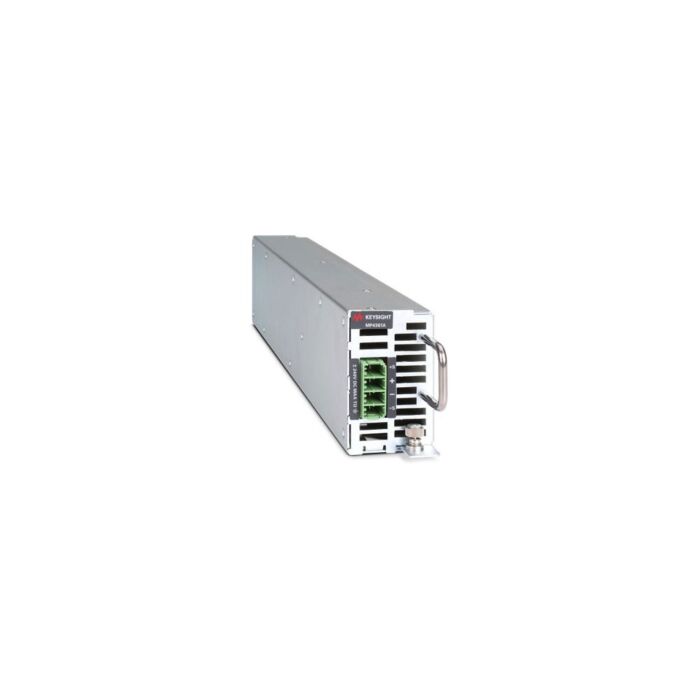

Keysight MP4361A Solar Array Simulator Auto Ranging Module, 0-160V, 0-10A

Solar Array Simulator Auto Ranging Module 0-160V, 0-10A

Order #: MP4361A

Mfg #: MP4361A

New

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$8,339.00

Availability: Call for availability

Ships Free Over $100

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States and Canada only.

Product Overview

Product Highlights

The Keysight MP4361A is a 1000 W solar array simulator DC power module that simulates the output characteristics of a solar array. The MP4361A is primarily a current source with very low output capacitance. It offers fast I-V curve changes allowing you to accurately simulate the output of different solar arrays under various environmental conditions (ex. temperature, age, eclipse, spin, etc.).

Features

Output Ratings

Max. Power: 1000 W
Max. Voltage: 160 V
Max Current: 10 A
Source and sinking capabilities

Programming Accuracy at 23 degree C ±5 degree C

Voltage (Fixed Mode): 0.05% + 25 mV
Current (Fixed Mode): 0.1% + 7 mA

Output Voltage Ripple & Noise

Voltage noise peak to peak: 500 mV
Voltage noise RMS: 50 mV

Output Current Ripple & Noise (Simulator/Table mode)

Current noise peak to peak: 48 mA
Current noise RMS: 6 mA
