Keysight DSOX3WAVEGEN WaveGen Built-in Function & Arbitrary Generator Upgrade for the 3000X Series
WaveGen Built-in Function & Arbitrary Generator/3000XSeries
Order #: DSOX3WAVEGEN
Mfg #: DSOX3WAVEGEN
$945.00
Keysight DSOX3WAVEGEN WaveGen Built-in Function & Arbitrary Generator Upgrade for the 3000X Series
WaveGen Built-in Function & Arbitrary Generator/3000XSeries
Order #: DSOX3WAVEGEN
Mfg #: DSOX3WAVEGEN
$945.00
Availability: Ships in 2-3 weeks
Product Highlights

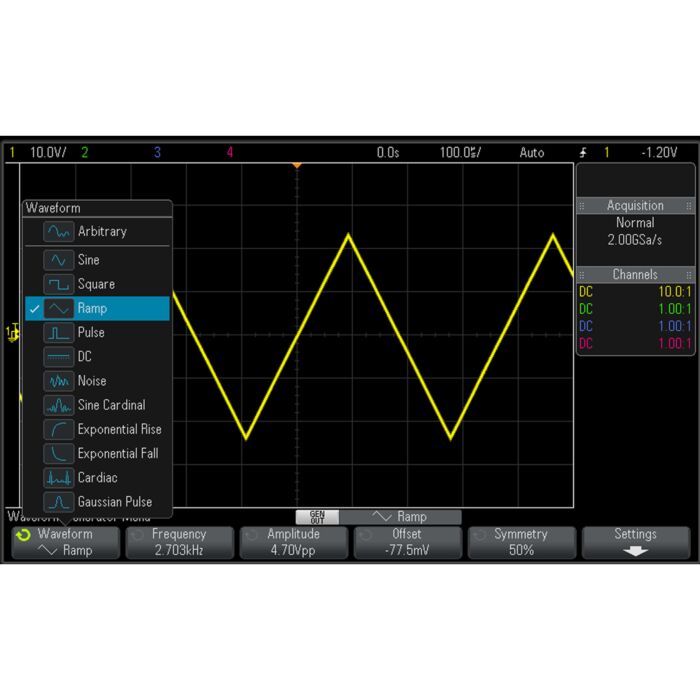

An industry first, the 3000 X-Series offers an integrated 20-MHz built-in function and arbitrary waveform generator. These capabilities are available on 3000 X-Series only with DSOX3WAVEGEN option installed. This option can be purchased with the scope or can be purchased later with an on-bench upgrade.
- 10 bits, 100 MSa/s, 8 kpts, DDS technology
Waveforms include:
- Sine wave, square wave (with variable duty cycle), ramp, pulse (with variable pulse width), DC, noise
- Sine cardinal, exponential rise, exponential fall, cardiac, gaussian
- Arbitrary waveform generation
- Store scope waveforms directly into WaveGen AWG memory with one button press
- Create/edit AWG waveforms using built-in editor
- Add noise and glitches
- Change amplitude, frequency, and offset
- Quickly test the margins of your designs using real-world signals
- Internal memory and USB thumb drive save/recall
- Existing customers who have previously purchased DSOX3WAVEGEN will receive AWG capability after upgrading their scope to version 2.0
