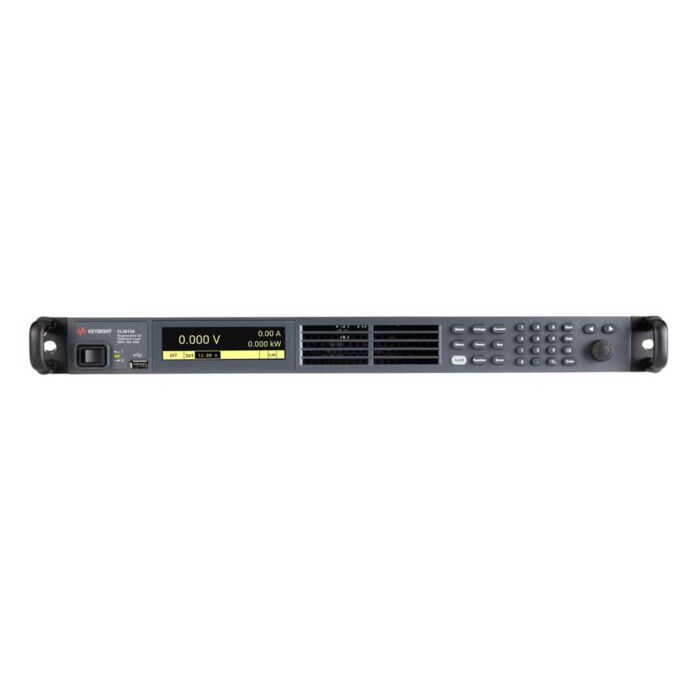

The Keysight EL4900 Series is a family of midrange, regenerative DC electronic loads. The regenerative capability enables the energy absorbed by the load to be returned to the grid cleanly, reducing energy consumption and cooling costs. Available in compact 1U-high and 2U-high options, the EL4900 Series helps reduce your energy costs, floor space requirements, and integration time. The EL4900 delivers a trusted performance with flexible features in a small, integrated regenerative electronic load.
The EL4900 Series enables you to do the following:
- Deliver a complete regenerative load for versatile testing needs.
- Provide voltage options of 80 V, 500 V, and 800 V, with current sinking up to 240 A for broad application coverage.
- Offer a wide 2,000 W to 12,000 W power range to match small-scale to high-power test requirements.
- Maximize rack efficiency with industry-leading compact 1U or 2U designs.
- Save valuable rack space with stackable parallel connections, up to 16 units.
- Cut operational costs by regenerating power back to the grid.
- Accelerate battery testing with a built-in waveform generation function.
- Connect easily with a full suite of industrial interfaces: LAN, USB, and CAN; optional analog, GPIB, and RS-232.
- Gain deeper insights with Keysight PathWave Advanced Power Suite's power analysis, control, and emulation tools.
