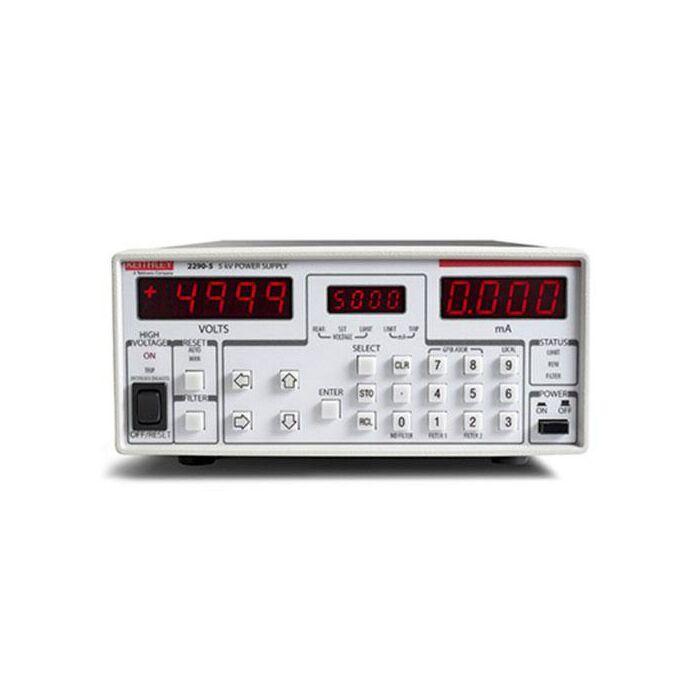

Keithley 2290-5

Product Highlights

• Voltage: 5 kV
• Current: 0.005A
• Power: 100W
• Source voltages up to 5kV
• 1µA current measurement resolution
• Low noise for precision sourcing and sensitive measurements; selectable filters reduce noise to less than 3mVRMS on the 5kV supply
• Safety interlock controls high voltage output
• IEEE-488 programmable
• Protection module prevents damage to low voltage instrumentation
• Accessories Supplied: CD with user manual, software drivers, and accessory information, Power cord
• 1-Year Warranty

The Keithley 2290-5 provides voltage outputs up to 5000V and has a 5mA current capacity, and the supply measures both output voltage with 1V resolution and output current with 1µA resolution. In addition to the voltage and current output displays, a third display shows one of four settings: output voltage, voltage limit, current limit, or current trip. These values can be set precisely with the front panel keypad. The settings can also be programmed over the IEEE-4888 interface, or the output voltage can be set with an analog control voltage.
