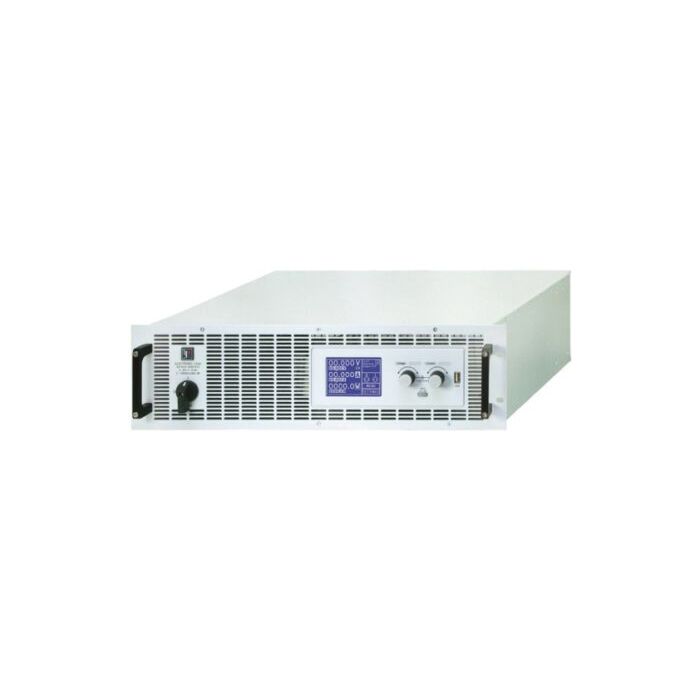

Intepro ELR9500-90 for Rent, Electronic DC Load with Energy Recovery, 500V, 90A

Product Highlights

The new series of electronic DC loads with energy recovery to mains, called ELR 9000, offers new voltage, current and power ratings for a multitude of applications. These devices incorporate the four common regulation modes constant voltage, constant current, constant power and constant resistance. The FPGA based control circuit provides additional features like a function generator, a table based regulation circuit for the simulation of non-linear internal resistances. The energy recovery function converts the supplied DC energy into a synchronous sine current and feeds it back into the local or public grid. This eliminates the usual heat dissipation to a minimum and saves energy costs at the same time.

The large LCD touch panel offers a modern and intuitive user interface. The ELR offers four operating modes, Constant Voltage (CV), Constant Current (CC), Constant Power (CP) and Constant Resistance (CR). Response times for the control via analog or digital interfaces have been improved by the DSP controlled hardware. In parallel operation of multiple devices, a master-slave bus is used to connect the chassis to a create high power system where the actual values are totalled and the set values distributed.

• Energy recovery of the supplied DC energy into the local or public grid
• Galvanically isolated DC input
• Input power ratings up to 10.5 kW per chassis
• Expandable to 105 kW or more
• Input voltages up to 1500 V
• Input currents up to 510 A per chassis
• FPGA/DSP based digital control
• Multilingual TFT touch panel
• User profiles, true function generator
• Analog interface and USB interface built-in
• Master-slave bus for parallel connection
• Extra USB port on the front for USB stick
• Optional, digital, plug & play interfaces or alternatively installed IEEE/GPIB port
• SCPI command language supported
