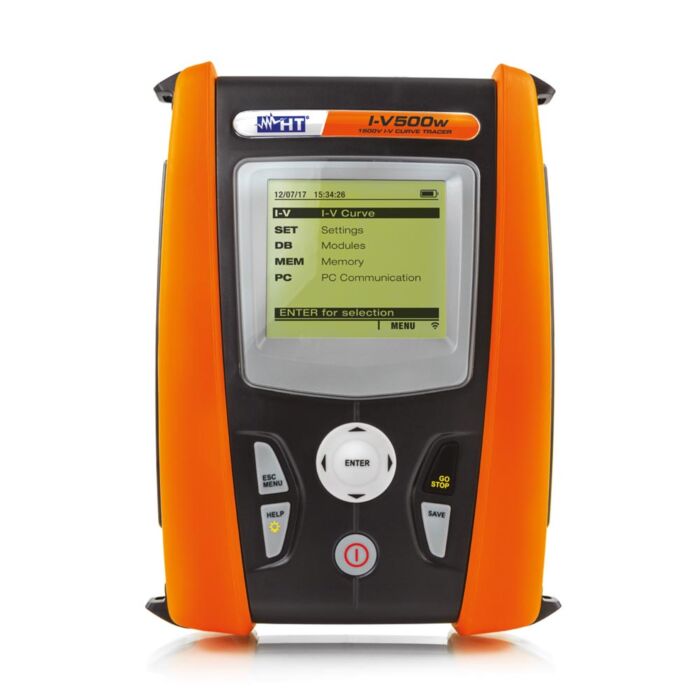

HT Instruments I-V500W

I-V Curve Tracer,1500V

Order #: I-V500W

Mfg #: IV500W

$4,995.00

Availability: Ships in 3-4 weeks

New Purchase Calibration

None

Calibration without Data + $165.90

Calibration with Data + $227.85

Accredited Calibration with Data and Uncertainties + $292.95

Add Calibration

Qty

I-V Curve measurement up to 1500V and 15A
Power measurement of modules and strings
Open-circuit voltage (Voc) up to 1500V
Short-circuit current (Isc) up to 15A
Irradiance measurement with HT304N remote sensor
Ambient and Panel temperature with PT300N probe
Wireless environmental measurements with Solar 02 remote unit
No distance limits for environmental measurements with Solar 02 remote unit
1500V & 15A: Suitable also for new PV plants with 1500VDC string voltage
Compact, lightweight and On-board screen: I-V500w needs only one person thanks to the on-board screen and returns immediate test results with OK or NOT OK outcome
Multi-String Autosequence™: Just few seconds to measure, save data and move to next string
Wi-Fi Connection: Connect your smartphone or tablet to download and analyze in details your measures with exclusive features like Troubleshooting Assistant, Jump function and others available only on the APP HTANALYSIS™
