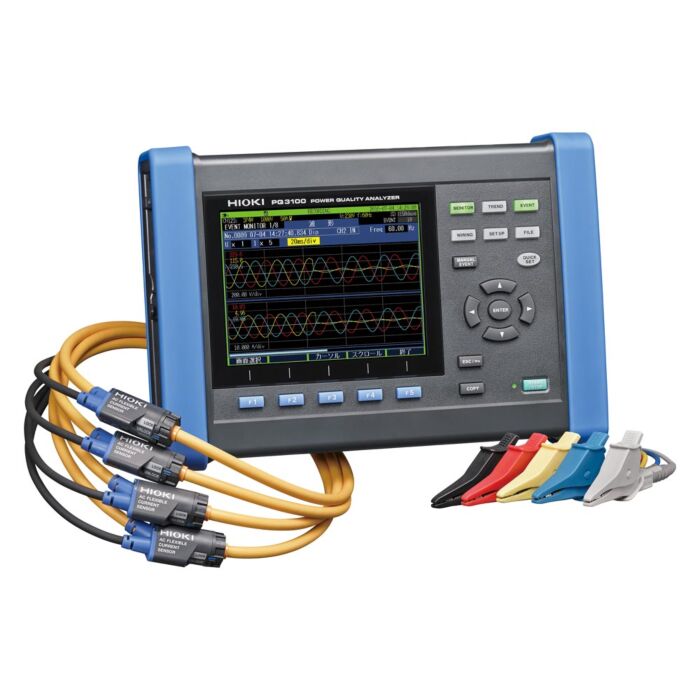

The PQ3100 aids in reliable power analysis by delivering analytical capabilities that reliably captures the full range of power anomalies along with exceptional ease of use.
Tariff fees or manufacture imposed surcharges may be applicable.
This product is available for shipping to the United States and Puerto Rico only.
Inrush current (half-wave), RMS value, waveform peak, unbalance rate (reverse phase/forward phase), K factor, Current DC
1/2 RMS value (half-wave offset wave calculation), crest factor
Power:
Active power, reactive power, apparent power, power factor, displacement power factor, active energy, reactive energy
Apparent energy, electrical charges
Flicker: Support for flicker measurement planned with a future firmware update.
Harmonics: 0th order (DC) to 50th order, voltage/current/power, phase angle (voltage/current), voltage/current phase difference, total harmonic distortion ratio (voltage/current)
Inter-harmonics: 0.5th order to 49.5th order, voltage/current
Circuit management - Record power quality on the utility grid
Equipment malfunctions - Analyze issues with power supplies
DC Power - Measure AC/DC power
Settings are a breeze with QuickSet - Launch QuickSet to navigate everything from connection procedures to wiring checks and measurement settings on the instrument’s screen.
External power supply not required - The PQ3100 powers all sensors, eliminating the need to use AC adapters. Flexible current sensors provide a convenient way to make measurements in tight spaces, including power supply circuits with double and triple wiring.
Complete recording of normal recovery - Where legacy models only recorded post anomaly waveforms for 1 sec., the PQ3100 extends recordings to 10 sec. The ability to also record 1 sec. before the anomaly occurred is useful when you need to analyze waveform characteristics before and after the event.
