Product Highlights

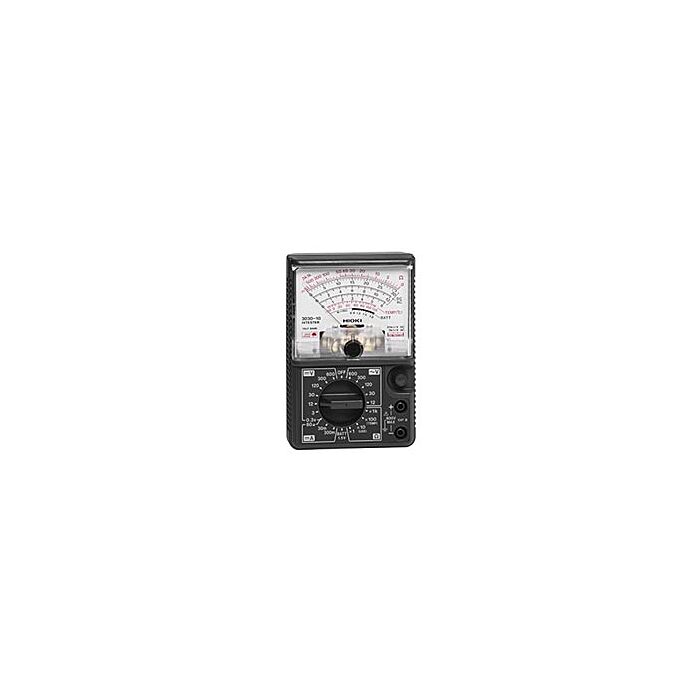

The Hioki 3030-10 is an analog multimeter that measures voltage, current and resistance, with robust construction that withstands a 1 meter drop onto a concrete floor.
- Drop proof design withstands drop onto a concrete floor from a height of 1 meter
- LED check, Battery check support
- Included carrying case designed to hold probes
- DC voltage range:
- 0.3 V (16.7 kΩ/V), 3/12/30/120/300/600 V (20 kΩ/V)
- Accuracy: ±2.5 % f.s. Max. rated voltage: 600 V
- AC voltage range:
12 V (9 kΩ/V) Accuracy: ±4 % f.s.
30/120/300/600 V (9 kΩ/V) Accuracy: ±2.5 % f.s.
Average rectifier effective value, Max. rated voltage: 600 V
DC current range:
- 60 µA/30 m/300 mA (300 mV internal voltage drop)
- Accuracy: ±3 % f.s.
Resistance range:
- 0 to 3 kΩ (center scale 30 Ω), R × 1, R × 10, R × 100, R × 1 k
- Accuracy: ±3 % of scale length
Battery check: 0.9 to 1.8 V, load resistance 10 Ω, Accuracy: ±6 % f.s.
Temperature scale: Note: The 3030-10 includes a temperature measurement scale, but because the optional Thermister Temperature Probe 9021-01 has been discontinued, the scale is not available for new customers.
Power supply: For resistance measurement range, R6P (AA) ×2 batteries
Dimensions and mass: 95 mm (3.74 in) W × 141 mm (5.55 in) H × 39 mm (1.54 in) D, 280 g (9.9 oz)
Each Unit Includes
- Test Lead L9207-30 ×1
- Spare fuse ×1
- R6P (AA) manganese batteries ×2
- Instruction manual ×1
- Carrying case 9390 ×1
