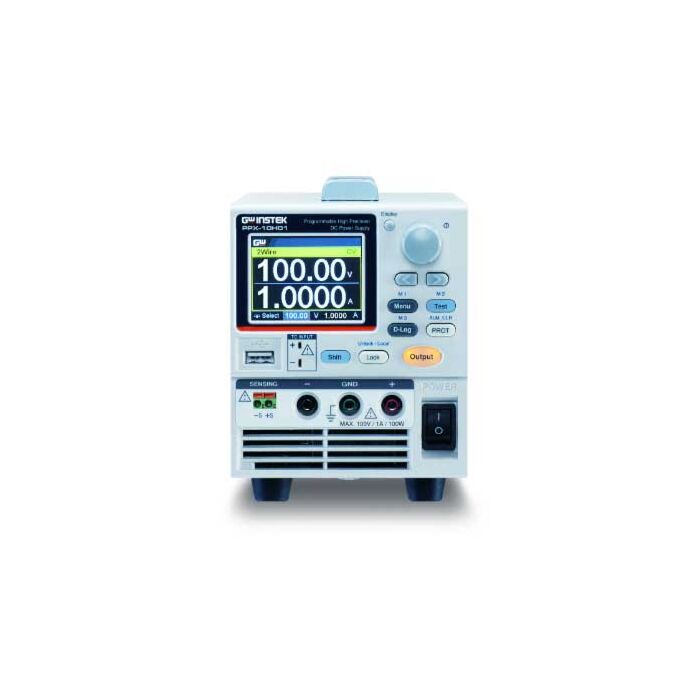

GW Instek PPX-10H01 100W Programmable High Precision DC Power Supply:100V/1A

The Instek PPX-10H01 High Precision Programmable DC Power Supply features output low noise and fast transient response characteristics. Measurement records can be stored in the USB for long-term measurement via the Data Logger function.

• 100W, 100V/1A
• CV, CC priority start function
• Four levels of current measurement resolution (min. 0.1uA)/two levels of voltage measurement resolution (min. 0.1mV)
• Power output ON/OFF delay function
• Adjustable voltage and current slew rate
• Bleeder circuit control
• Delayed over-current protection (OCP Delay)
• Sequential power output function
• Remote Sensing function
• Data Logger
• 10 sets of memory function
• Over voltage protection, under voltage limit, over current protection, over temperature protection, AC alarm function
• Supports K Type thermocouple temperature measurement
• Interfaces: USB, LAN, RS-232, RS-485
• Size: 3U high, in line with 1/4 Rack

Each Unit Includes

• 1 - Programmable High Precision DC Power Supply (PPX-10H01)
• 1 - CD (User Manual)
• 1 - Power Cord
• 1 - Test Lead, European Type Jack Terminal, 1m, 3A (GTL-203A)
