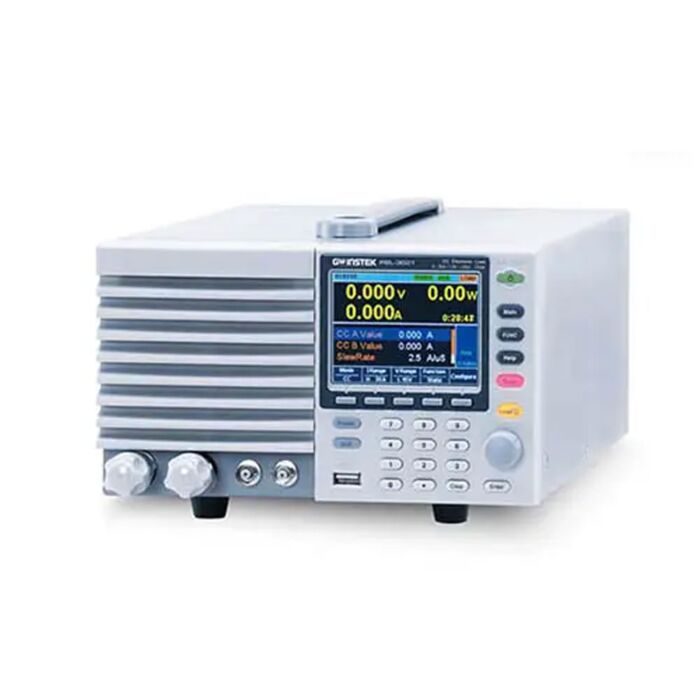

The Instek PEL-3021 175W/35A Single-Channel Programmable DC Electronic Load has 0.01mA current resolution and 16A/µs current Slew Rate. It is very ideal for testing server power supply and SPS (Switching Power Supply) for commercial and industrial computers. For a heavy-duty device like cloud ecosystem running 24-hour nonstop operations, a stable and high-power power supply, ranging from 350W to 1500W, is required to maintain the normal operation of server, Hub, and the equipment of data storage and internet communications. Owing to the increasing demand of data transmission and large scale data storage of telecommunications systems, the infrastructure of internet communications is in the pace of rapid expansion. This has greatly boosted the market demand of telecommunications equipment powered by power supply of 2000W and above. The flexible power combination of PEL-3000 series meets the test requirements of present high-power power supply.
The PEL-3000 series, a single-channel, programmable D.C. electronic load with 0.01 mA current resolution and 16 A/µs current Slew Rate, is very ideal for testing server power supply and SPS (Switching Power Supply) for commercial and industrial computers. For a heavy-duty device like cloud ecosystem running 24-hour nonstop operations, a stable and high-power power supply, ranging from 175 W to 1050 W, is required to maintain the normal operation of server, Hub, and the equipment of data storage and internet communications. Owing to the increasing demand of data transmission and large scale data storage of telecommunications systems, the infrastructure of internet communications is in the pace of rapid expansion. This has greatly boosted the market demand of telecommunications equipment powered by power supply of 2000 W and above. The flexible power combination of PEL-3000 meets the test requirements of present high-power power supply.
- 175W Programmable DC Electronic Load
- Current: 0 V to 35 A
- Operating voltage (DC): 1.5V~150V
- Operating Mode: C.C/C.V/C.R/C.P/CC+CV/CR+CV/CP+CV
- Parallel Connection of Inputs for Higher Capacity (Max: 9,450W)
- Support of High Slew Rate: Max 16A/us
- Run Program Function (GO/NO GO Test)
- Sequence Function for High Efficient Load Simulations
- Commands are compatible with Kikusui PLZ-4W model
- Dynamic(Switching) Function: 0.0166Hz ~20kHz
- Soft Start Function: Off/On(1~200ms, Res: 1ms)
- Adjustable OCP/OVP/OPP/UVP Setting
Applications
- Testing DC Power Supplies / Bench Supplies
- Battery Discharge / Characterization
- Quality / Conformance Testing
- Load simulation / Emulation
Each Unit Includes
- 1 - 175W, 35A, Programmable DC Electronic Load (PEL-3021)
- 1 - Quick Start Guide
- 1 - User Manual (CD)
- 1 - Load Input Terminal Cover
- 2 - Sets of Type M8 Bolts/Nuts/Springs/Washers
- 1 - Power Cord
