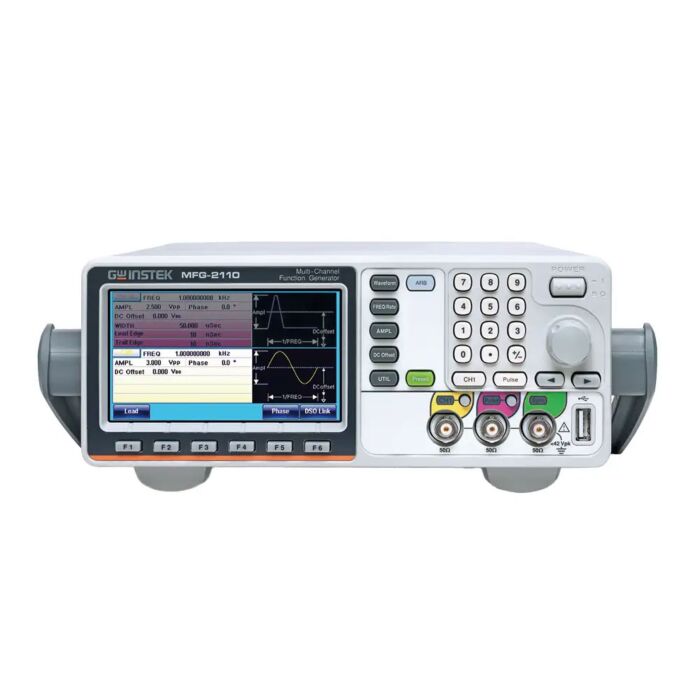

The Instek MFG-2110 10 MHz Single Channel Arbitrary Function Generator has a pulse generator, whose frequency reaches 25MHz. The AFG channel of the MFG2110 outputs sine, square, and triangle, etc. The MFG-2110 features true point-by-point output arbitrary waveform characteristics of 200 MSa/s sample rate, 100 MHz waveform repetition rate, 14 bit resolution, and 16k point memory depth. Independent input/output power amplifier with 20W, 10dB, DC-100KHz bandwidth, and distortion less than 0.1% can be applied to the audio application.
The overall design of the MFG-2110 is earth ground isolation among output/input terminals and instrument chassis that can only be found in high-level signal sources. The output channels can sustain maximum isolation voltage up to ±42Vpk (DC+ AC peak value) to earth ground that is ideal for floating circuit tests. Multi-unit outputs can be executed without factoring in grounding reference issue. There is no additional isolation requirement for experiments such as "full-wave rectification" and "voltage doubler" which are easy and safe. An external power supply can bring up the DC bias voltage to ±42Vpk to meet the requirements of higher DC bias voltage such as automotive and educational applications.
- 1 Equivalent Performance Arbitrary Channel Frequency: 1 Hz-10 MHz
- Pulse Generator Frequency : 25MHz
- Power Amplifier : Low Frequency, 100kHz, Output 20W
- True Point by Point Output Arbitrary Waveform Function: 200MSa/s
- Earth Ground Isolation Design Among I/O Terminals and Instrument Chassis
- Frequency Counter : 150MHz, 8 bits
- AM/FM/PM/ASK/FSK/PSK/SUM/PWM Modulation
- Built-in Medical and Automotive Electronic Waveforms
- 4.3 Inch TFT Color Display
Applications
- Analog Filters, Amplifiers, Sensors
- Modulation / communications testing
- Frequency response / sweep tests
- Educational / lab teaching
- Component / device tests
Each Unit Includes
- 1 - 10 MHz Single Channel Arbitrary Function Generator with Pulse Generator (MFG-2110)
- 1 - Quick Start Guide
- 1 - CD-ROM with MFG Software and Manual
- 1 - BNC-Alligator Test Lead (GTL-101)
