GW Instek GDP-100 100MHz High Voltage Differential Probe

Order # GDP-100 | Mfg # GDP-100
$886.00
  • Type: HV Differential Probe
  • Bandwidth: 100 MHz
  • Converts high voltages to low voltages for display on oscilloscopes
  • User-selectable attenuation settings for broad range of applications
  • Includes probe tip accessories for use in tight spaces
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

Overview

The Instek GDP-100 100 MHz High Voltage Differential Probe is for use with the GDS-3000A, GDS-3000, MPO-2000, MSO-2000EA, MDO-2000A, MDO-2000E, GDS-2000A, GDS-2000E, and GDS-1000B Series Oscilloscopes.

  • Type: High Voltage Differential Probe
  • Bandwidth: 100 MHz
  • Attenuation: x100, x200, x500, x1000
  • Accuracy: +/-2%
  • Applicable Devices:
    • GDS-3000A Series Digital Storage Oscilloscopes
    • GDS-3000 Series Digital Storage Oscilloscopes
    • MPO-2000 Series Multi-Function Programmable Oscilloscopes
    • MSO-2000EA Series Mixed-Signal Oscilloscopes
    • MDO-2000A Series Mixed-Domain Oscilloscopes
    • MDO-2000E Series Mixed-Domain Oscilloscopes
    • GDS-2000A Series Digital Storage Oscilloscopes
    • GDS-2000E Series Digital Storage Oscilloscopes
    • GDS-1000B Series Digital Storage Oscilloscopes

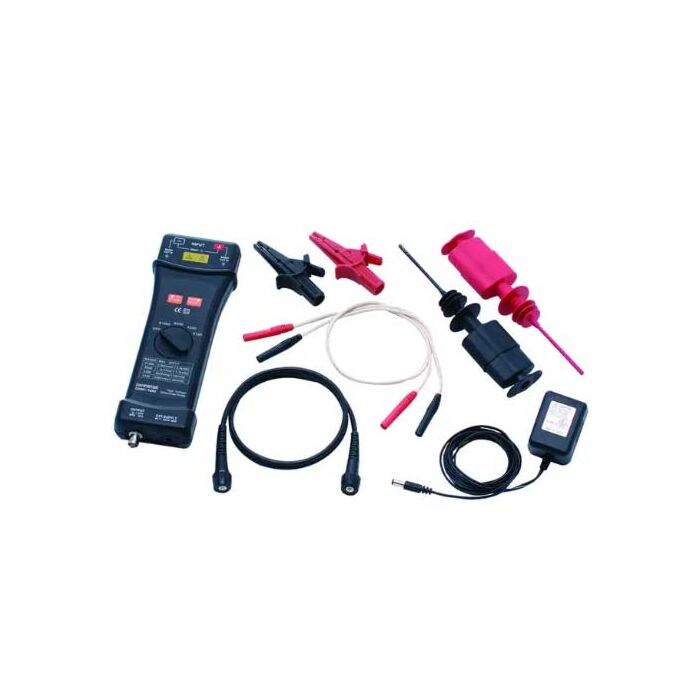

Each Unit Includes

  • 1 - 100 MHz High Voltage Differential Probe (GDP-100)
  • 1 - Adapter
  • 1 - BNC-to-BNC Cable
  • 2 - Banana-Plug-to-Banana-Plug Silicon Wires (Red, Black)
  • 2 - HV IC Clips (Red, Black)
  • 2 - Alligator Clips (Red, Black)
