GW INSTEK rolls out the new Dual Measurement Multimeter, the GDM-904x series, which has two models -GDM-9041 and GDM-9042, to replace the existing GDM-834x series. Its exceptional features include 50,000 counts, LCD display, 0.02% basic DC voltage accuracy, Automatic Identification (A.I.) measurement and a USB protocol connector to provide users with measurement precision, lucid data observation, smooth measurement experience and the convenience to connect with the personal computer.
The GDM-904x series not only supports the fundamental measurement items provided by general multimeters, but also equips with capacitance and temperature measurement functions. At the same time, the GDM-904x series' Automatic Identification (A.I.) measurement can automatically identify measurement signals and switch measurement items before performing measurements, without the need for users to switch manually. Furthermore, the GDM-904x series also provides many math functions to meet the measurement requirements for manufacturing process tests, educational experiments and testing facilities.
With respect to storing and retrieving data, the GDM-904x series has two methods to offer: first, the USB flash drive storage function - operating alone without connecting with a computer; second, USB interface (support USBCDC and USBTMC) and optional GPIB interface (must be installed in factory) for automatic measurement system users to conveniently save and retrieve data.
- 50000 Counts Dual Measurement Multimeter with USB Host/Device and opt. GPIB
- 4.3" TFT Graphic LCD
- DCV Basic Accuracy: 0.02%
- A. I. Measurement Offers Automatic Identification and Measurement for Voltage, Resistance, Diode and Continuity Tests Without Need for Manual Selection
- 11 Measurement Functions: DCV, ACV, DCI, ACI, 2-wire Resistance, Frequency, Period, Diode, Continuity, Capacitance and Temperature
- True-RMS (AC, AC+DC) Measurements
- Dual Measurement Function to Providing Two Selected Measurement Simultaneously
- Max./Min., REL, MX+B, 1/X, Ref %, Compare, Hold, dB, dBm
- Temperature measurement function
- USB Interface (support USBCDC and USBTMC) and GPIB Factory Installed
- USB storage for Data collection
- Max Current: 10A
- Max Voltage: 1000V
Applications
- Laboratory Measurements
- Production / Manufacturing Testing
- Prototyping / R&D
- Educational / Teaching Labs
- Test Automation / Data Logging
- General Electronics / Industrial Bench Use
Each Unit Includes

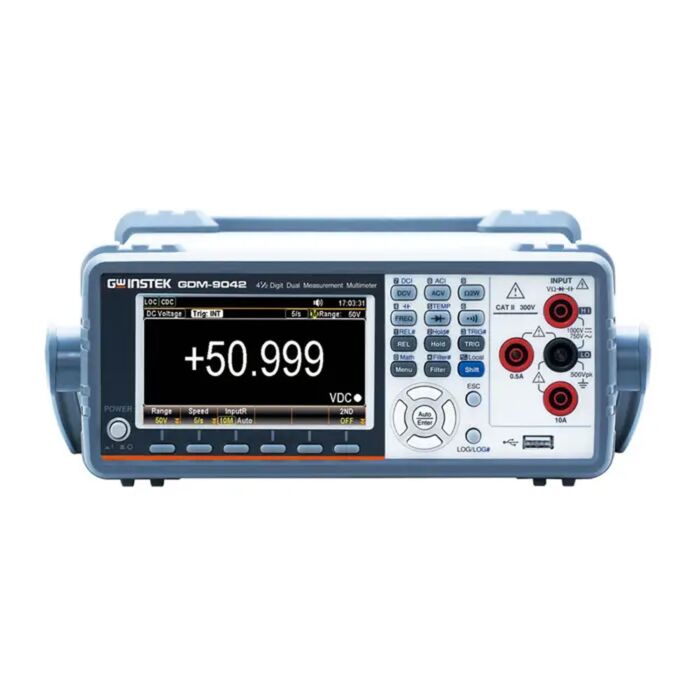

- 1 - True-RMS 50,000 Counts Dual Measurement Multimeter (GDM-9042GP)
- 1 - Safety Instruction Sheet
- 1 - Power Cord
- 1 - Test Lead Set (GTL-207A)
