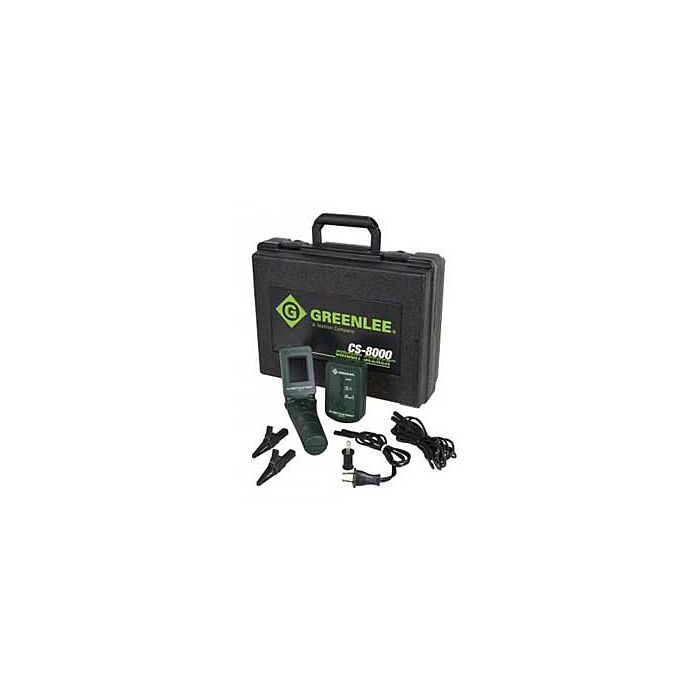

Greenlee Textron CS-8000
Circuit Seeker

Order #: CS-8000

Mfg #: CS-8000

Questions about availability or need help? Contact Us:

(800) 633-0561
$1,017.42

Greenlee Textron CS-8000

Circuit Seeker

Order #: CS-8000

Mfg #: CS-8000

$1,017.42
Availability: Ships in 2-3 weeks

Product Highlights

  • Advanced patented non-directional sensing technology
  • Superior sensitivity and functionality providing for accurate tracing and locating
  • Ergonomic receiver with information-rich full-color graphical LCD
  • Graphics and audible signal provide quick and easy to understand tracing feedback
  • Traces concealed wiring, locates junction boxes, and finds breakers for live or open circuits
  • Locates and identifies blown fuses
  • Finds shorts and breaks in conductors
  • Low pitch, high volume audible indicator
  • User-selectable automatic or manual gain capability for fast, convenient use
  • Power saving features promote extended battery life (Auto Power Off)
  • Can be used on GFCI protected circuits
  • Supports transmitter-to-receiver distances up to 4 miles for closed circuit tracing
  • Does not affect sensitive electronic equipment on the circuit
  • Auto backlight on receiver maximizes battery life
  • Lifetime Limited Warranty
  • Temperature: 0 to +50 ºC (32 to 122 ºF)
  • Altitude: 2000 m (6500’) maximum
  • Pollution Degree: 2
  • Indoor use only
  • Measurement Category: Category III, 750V
  • Operating Voltage: 0-750 V AC/DC
  • Live line LED indicates voltage above 12 VAC or 5 VDC
  • Frequency: 15.15 kHz
  • Low battery indicator
  • Batteries: Two AA batteries (NEDA 15A or IEC LR6)
  • Range from Receiver to item with Signal:
  • Live Line Mode – up to 20 ft (6 m) from circuit
  • Open Line Mode – Up to 10 ft. (3 m) with a metallic connection to ground
  • 1 to 3 ft. (.3 to .9 m) with a capacitive ground reference
