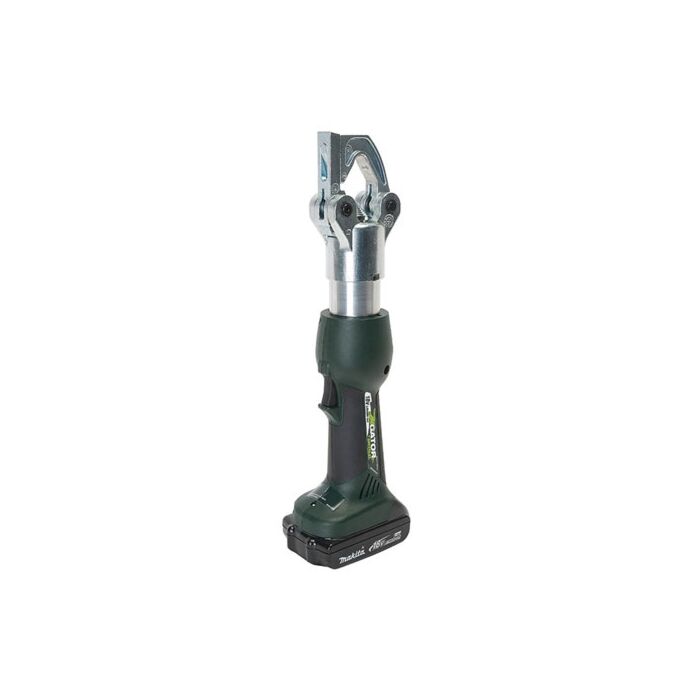

Greenlee EK6IDCLX12
Crimping Tool, Dieless 12V Chrg 02828

Order #: EK6IDL12

Mfg #: EK6IDCLX12

Questions about availability or need help? Contact Us:

(800) 633-0561
$3,814.45

Greenlee EK6IDCLX12

Crimping Tool, Dieless 12V Chrg 02828

Order #: EK6IDL12

Mfg #: EK6IDCLX12

$3,814.45
Availability: Ships in 2-3 weeks

Product Highlights

  • The EK6IDL consists of two individual pistons (large exterior and a small interior one)
  • Dual stage telescopic cylinder
  • The interior small piston transmits a force of 30kN and features two functions
  • First it fixes cable lugs and connectors to the correct position prior to crimping operations
  • Secondly it crimps smaller cross sections up to 1/0 AWG
  • The large exterior piston transmits a force of 60kN and crimps all larger cross sections.
  • Managed by Intelli-Crimp, the variable 30kN / 60kN cylinder safeguards that the optimal crimp performance is always being achieved regardless of the cross section.
  • Extremely large crimp range is ensured, copper material 8AWG-500MCM and aluminum material 1/0AWG-350MCM.
  • Compact design, low weight and heavy duty performance;
  • Application : Dieless Crimping
  • Battery : 1.5 Ahr LI-Ion (2)
  • Battery Charger : 12V Makita
  • Battery Charge Time : 15 Minutes
  • Cable Type : Wire Classes B, C, G, H, I, K, M, and DLO
  • Capacity : Standard Stranded Wire classes - B, C, Copper #8 - 500 kcmil (MCM), Aluminum 1/0 - 350 kcmil (MCM) Fine Stranded (Cu) Wire classes - G, H, I, K, M, #8 - 350 kcmil (MCM) DLO (Cu) Locomotive #8 - 373.7 kcmil (MCM)
  • Crimp Cycle Time : Max. 7 seconds
  • Crimping Force : Variable 3-6 Ton (30-60Kn)
  • Estimated Cycles per Charge : 100-300 based on cable size
  • Handle Type : Over molded rubber grip
  • Height : 15"
  • Rotation : 355 degrees
  • Sub Brand : Gator
  • Type : Indent crimper
  • Weight : 5.5 lbs
